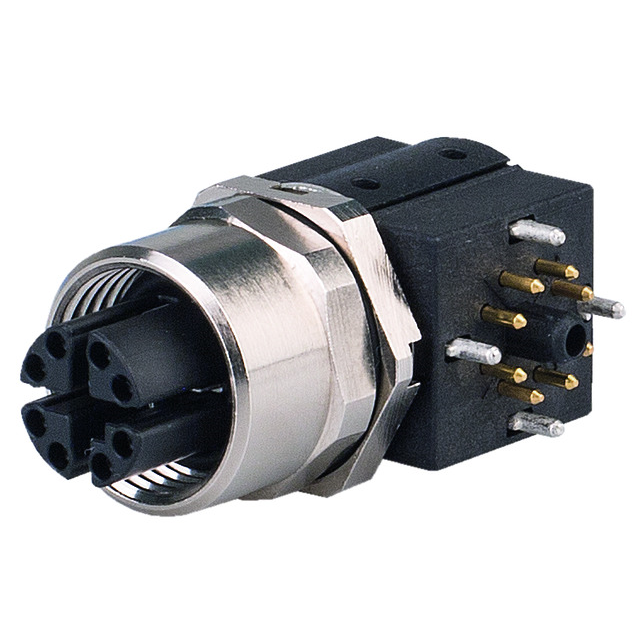

M12X-BS C6A THR 90 2PC

Search across all available documentation for this part.

Active

Telegartner Inc

M12X-BS C6A THR 90 2PC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100007555	J80320 Series

Applications	Industrial	Industrial
Color	Black, Silver	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze	Bronze
Current Rating (Amps)	0.5 A	0.5 A
Features	Board Guide	Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	8	8
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	X	X
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass	Brass
Shell Size - Insert	M12-8	M12-8
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	50 VAC, 60 VDC	50 - 60 VAC

M12X-BS C6A THR 90 W/O HOUS

Part	Termination	Color	Features	Shell Size - Insert	Insert Material	Contact Finish - Mating	Applications	Voltage Rating	Shell Material	Shell Finish	Ingress Protection	Primary Material	Mounting Type	Contact Material	Orientation	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Current Rating (Amps)	Number of Positions	Connector Type
Telegartner Inc 100007556	Solder	Black, Silver	Board Guide	M12-8	Nylon, Polyamide (PA)	Gold	Industrial	50 VAC, 60 VDC	Brass	Nickel	IP67 - Dust Tight, Waterproof	Metal	Panel Mount, Right Angle, Through Hole	Bronze	X	Unshielded	85 °C	-40 °C	Bulkhead - Front Side Nut	0.5 A	8	Female Sockets, Plug
Telegartner Inc 100007555	Solder	Black, Silver	Board Guide	M12-8	Nylon, Polyamide (PA)	Gold	Industrial	50 VAC, 60 VDC	Brass	Nickel	IP67 - Dust Tight, Waterproof	Metal	Panel Mount, Right Angle, Through Hole	Bronze	X	Unshielded	85 °C	-40 °C	Bulkhead - Front Side Nut	0.5 A	8	Female Sockets, Plug
Telegartner Inc 100007554	Solder	Black, Silver	Board Guide	M12-8	Nylon, Polyamide (PA)	Gold	Industrial	50 VAC, 60 VDC	Brass	Nickel	IP67 - Dust Tight, Waterproof	Metal	Panel Mount, Right Angle, Through Hole	Bronze	X	Unshielded	85 °C	-40 °C	Bulkhead - Front Side Nut	0.5 A	8	Female Sockets, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (Data) Position Circular Connector Plug, Female Sockets Solder
