PIC16C621A-20/SO
ActiveMicrochip Technology

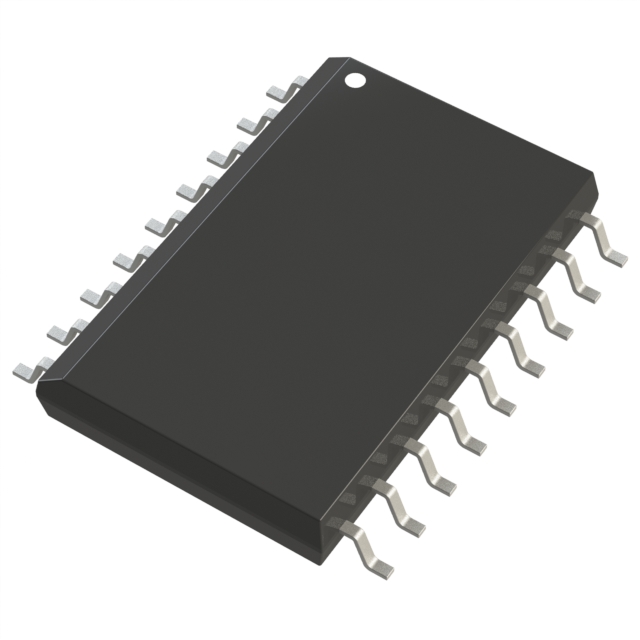

8-BIT, OTPROM, 20 MHZ, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, MS-013, SO-18
Deep-Dive with AI
Search across all available documentation for this part.
PIC16C621A-20/SO
ActiveMicrochip Technology
8-BIT, OTPROM, 20 MHZ, RISC MICROCONTROLLER, PDSO18, 0.300 INCH, PLASTIC, MS-013, SO-18
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PIC16C621A-20/SO | PIC16C621 Series |
|---|---|---|
| Core Processor | PIC | PIC |
| Core Size | 8-Bit | 8-Bit |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Number of I/O | 13 | 13 |
| Operating Temperature [Max] | 70 °C | 70 - 125 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Oscillator Type | External | External |
| Package / Case | 18-SOIC | 18-SOIC, 20-SSOP, 18-DIP |
| Package / Case | 0.295 " | 0.295 - 7.62 " |
| Package / Case | 7.5 mm | 7.5 mm |
| Package / Case | - | 0.209 - 5.3 mm |
| Program Memory Size | 1.75 KB | 1.75 KB |
| Program Memory Type | OTP | OTP |
| RAM Size | 96 x 8 | 80 x 8, 96 x 8 |
| Speed | 20 MHz | 4 - 20 MHz |
| Supplier Device Package | 18-SOIC | 18-SOIC, 20-SSOP, 18-PDIP |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 - 6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.5 V | 2.5 - 3 V |
