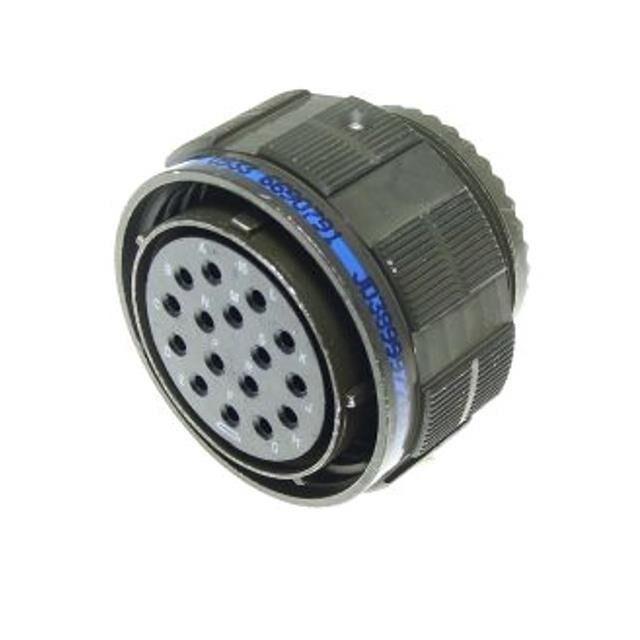

D38999/20FE2SBL

Active

Corsair

D38999 SER III RECEPTACLE

Search across all available documentation for this part.

Active

Corsair

D38999 SER III RECEPTACLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Circular Connector Receptacle Housing Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	D38999/20FE2SBL	D38999/20FE Series

Applications	-	Aviation, Marine, Military
Color	-	Silver
Connector Type	Receptacle Housing	Receptacle Housing, Receptacle, Male Pins
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	1.27 µm
Contact Finish Thickness - Mating	-	50 µin
Contact Material	-	Copper Alloy
Contact Type	Crimp	Crimp
Current Rating (Amps)	-	13 A
Housing Color	Silver	Silver
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insert Material	-	Thermoplastic
Mounting Feature	Flange	Flange
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	8
Operating Temperature	-	-65 ░C
Operating Temperature	-	200 °C
Orientation	B	B
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel, Nickel
Shell Material	Aluminum	Aluminum
Shell Size - Insert	-	17-8
Shell Size, MIL	E	E
Shielding	-	Shielded
Termination	-	Crimp
Type	For Female Sockets	For Female Sockets

D38999 SER III RECEPTACLE

Part	Connector Type	Orientation	Shell Size, MIL	Note	Mounting Feature	Shell Material	Type	Contact Type	Primary Material	Shell Finish	Housing Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Number of Positions	Color	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Applications	Termination	Insert Material
Corsair D38999/20FE2SBL	Receptacle Housing	B	E	Contacts Not Included	Flange	Aluminum	For Female Sockets	Crimp	Metal	Electroless Nickel	Silver
Corsair D38999/20FE8PB	Male Pins, Receptacle	B	E		Flange	Aluminum			Metal	Nickel		1.27 µm	50 µin	IP67 - Dust Tight, Waterproof	8	Silver	13 A	Copper Alloy	Gold	Shielded	-65 ░C	200 °C	17-8	Aviation, Marine, Military	Crimp	Thermoplastic
