ERN.1S.304.CLL
ActiveLEMO

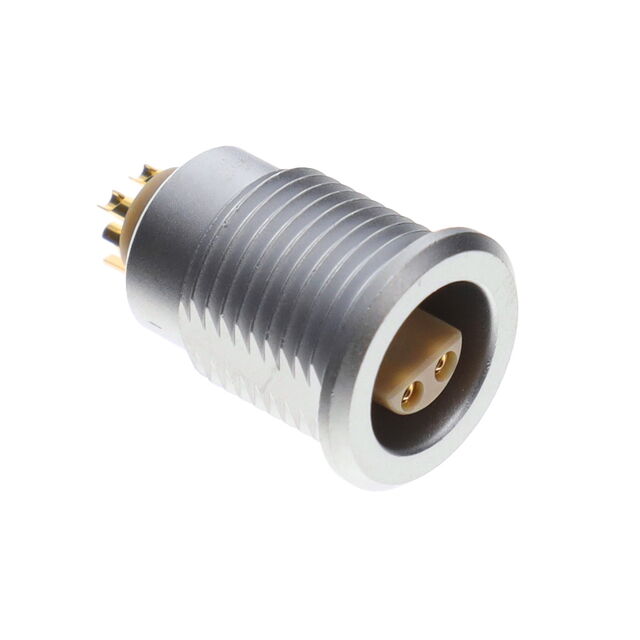

CONN CIRC RCPT 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERN.1S.304.CLL
ActiveLEMO
CONN CIRC RCPT 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERN.1S.304.CLL | ERN.1S Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Female Sockets, Male Pins, Receptacle | Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze, Brass | Bronze, Brass |
| Current Rating (Amps) | 10 A | 7 - 18 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Ground | Ground |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 4 | 1 - 6 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 304 | 120 - 306 |
| Shielding | Shielded | Shielded |
ERN.1S Series
CONN CIRC RCPT 3P GOLD SLDR CUP
| Part | Color | Current Rating (Amps) | Mounting Feature | Contact Material | Primary Material | Ingress Protection | Connector Type | Material Flammability Rating | Insert Material | Features | Fastening Type | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Shell Finish | Contact Finish - Mating | Shielding | Shell Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ERN.1S.303.CLL | Silver | 10 A | Bulkhead - Rear Side Nut | Brass, Bronze | Metal | IP50 | Female Sockets, Male Pins, Receptacle | UL94 V-0 | Polyetheretherketone (PEEK) | Ground | Push-Pull | 303 | -55 °C | 250 °C | Keyed | Chrome | Gold | Shielded | Brass | |
LEMO ERN.1S.304.CLL | Silver | 10 A | Bulkhead - Rear Side Nut | Brass, Bronze | Metal | IP50 | Female Sockets, Male Pins, Receptacle | UL94 V-0 | Polyetheretherketone (PEEK) | Ground | Push-Pull | 304 | -55 °C | 250 °C | Keyed | Chrome | Gold | Shielded | Brass | 4 |
LEMO ERN.1S.120.CTL | Silver | 18 A | Bulkhead - Rear Side Nut | Bronze | Metal | IP50 | Receptacle, Female Sockets | Polytetrafluoroethylene (PTFE) | Ground | Push-Pull | 120 | -55 °C | 250 °C | Keyed | Chrome | Gold | Shielded | Brass | 1 | |
LEMO ERN.1S.306.CLL | Silver | 7 A | Bulkhead - Rear Side Nut | Brass, Bronze | Metal | IP50 | Female Sockets, Male Pins, Receptacle | UL94 V-0 | Polyetheretherketone (PEEK) | Ground | Push-Pull | 306 | -55 °C | 250 °C | Keyed | Chrome | Gold | Shielded | Brass | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.75 | |
| 10 | $ 30.43 | |||
| 25 | $ 29.12 | |||
| 50 | $ 28.18 | |||
| 100 | $ 27.24 | |||
| 250 | $ 25.74 | |||
Description
General part information
ERN.1S Series
4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
