3723

Obsolete

Adafruit Industries LLC

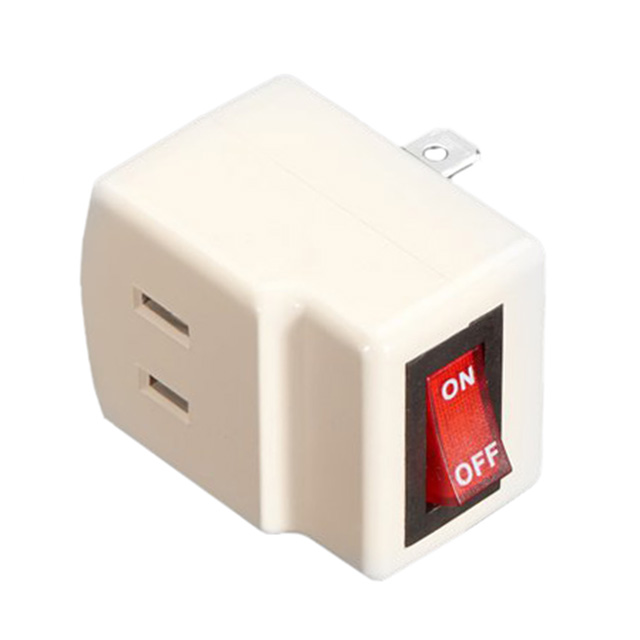

SWITCH ROCKER 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3723

Obsolete

Adafruit Industries LLC

SWITCH ROCKER 15A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3723

Actuator Marking	Vertical, ON OFF
Actuator Type	Concave (Curved) - Illuminated
Color - Actuator/Cap	Red
Current Rating (Amps)	15 A
Mounting Type	Free Hanging (In-Line)
Switch Function	On-Off
Termination Style	Blade Terminals
Voltage Rating - AC	125 V
