Q-0101H0001048i

Active

Amphenol Custom Cable

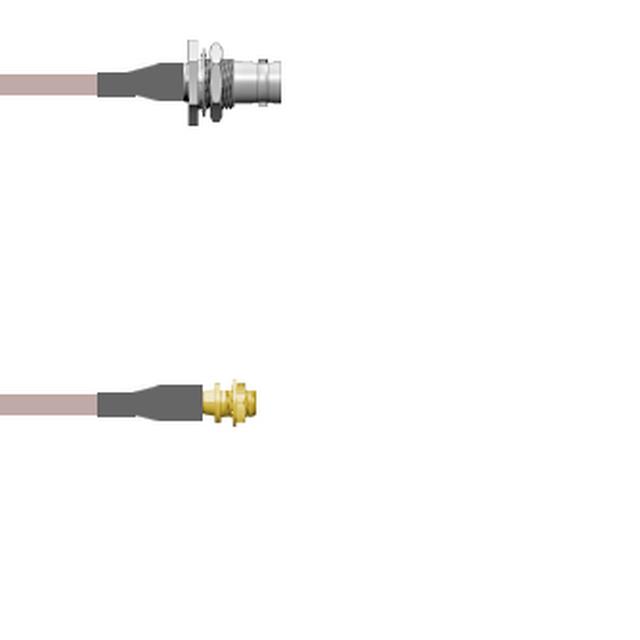

COAX CBL BNC TO MMCX 4'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL BNC TO MMCX 4'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0101H0001048i	Q-0101H0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	MMCX Jack	MMCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount	Panel Mount
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	1200 mm	2 - 1200 mm
Length	4 ft	4 - 9.8 ft
Length	48 in	19.69 - 118.1 in
Length	-	457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to MMCX	BNC to MMCX

COAX CBL BNC TO MMCX 4'

Part	1st Connector Mounting Feature	Color	Length	Length	Length	2nd Contact Gender	1st Connector	2nd Connector	Overall Impedance	1st Connector Mounting Type	Style	2nd Connector Mounting Feature	Cable Type	Features	1st Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0101H0001048i	Bulkhead - Front Side Nut	Copper	1200 mm	4 ft	48 in	Female	BNC Jack	MMCX Jack	50 Ohms	Panel Mount	BNC to MMCX	Bulkhead - Front Side Nut	RG-178	Shielded	Female	4 GHz	Panel Mount
Amphenol Custom Cable Q-0101H0001003M	Bulkhead - Front Side Nut	Copper	3 m	9.8 '	118.1 in	Female	BNC Jack	MMCX Jack	50 Ohms	Panel Mount	BNC to MMCX	Bulkhead - Front Side Nut	RG-178	Shielded	Female	4 GHz	Panel Mount
Amphenol Custom Cable Q-0101H0001002M	Bulkhead - Front Side Nut	Copper	2 m	6.6 ft	78.7 in	Female	BNC Jack	MMCX Jack	50 Ohms	Panel Mount	BNC to MMCX	Bulkhead - Front Side Nut	RG-178	Shielded	Female	4 GHz	Panel Mount
Amphenol Custom Cable Q-0101H00010.5M	Bulkhead - Front Side Nut	Copper	50 cm		19.69 "	Female	BNC Jack	MMCX Jack	50 Ohms	Panel Mount	BNC to MMCX	Bulkhead - Front Side Nut	RG-178	Shielded	Female	4 GHz	Panel Mount
Amphenol Custom Cable Q-0101H0001018i	Bulkhead - Front Side Nut	Copper				Female	BNC Jack	MMCX Jack	50 Ohms	Panel Mount	BNC to MMCX	Bulkhead - Front Side Nut	RG-178	Shielded	Female	4 GHz	Panel Mount	457.2 mm	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to MMCX RG-178 48.0" (1.2m) 4.0'

Technical documentation and resources

No documents available
