82444 877U1000

Active

Belden Inc.

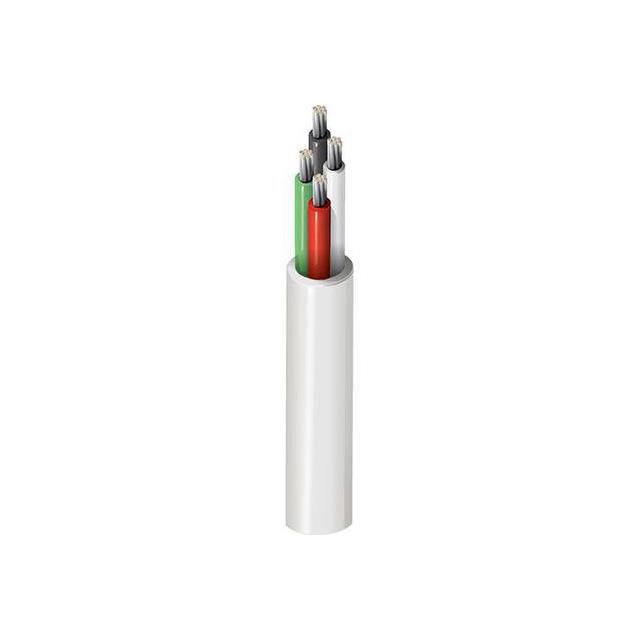

CABLE 4COND 22AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 22AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	82444 877U1000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Wire Gauge	Jacket Color	Conductor Insulation	Voltage	Conductor Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Length	Length
Belden Inc. 82444 877U1000	22 AWG	Natural	Fluorinated Ethylene-Propylene (FEP)	300 V	Copper Tinned	Audio Control Instrumentation	0.015 in	0.381 mm	Multi-Conductor	7	30 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	60 °C	0 °C	4	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.96

General part information

4 Conductor Multi-Conductor Cable Natural 22 AWG 1000.0' (304.8m)
