CLS-RO11A12250B

Active

Lumex Opto/Components Inc.

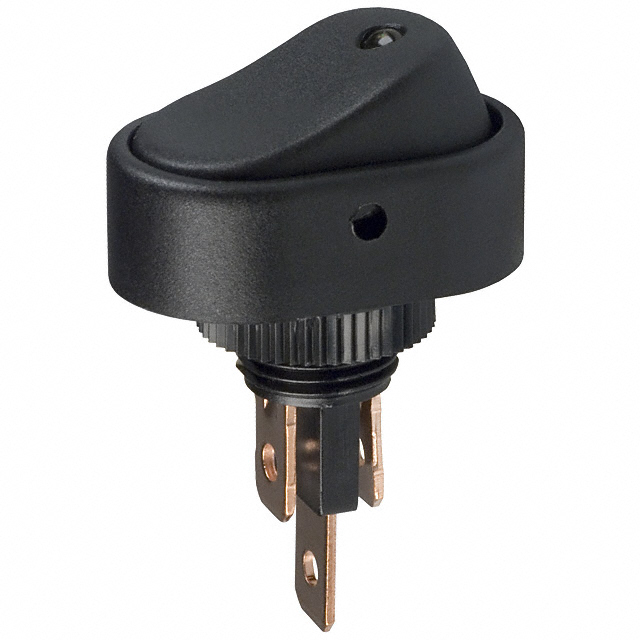

SWITCH ROCKER SPST 30A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLS-RO11A12250B

Active

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 30A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLS-RO11 Series

Rocker Switch SPST 30A (DC) Panel Mount, Threaded Body with Nut

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLS-RO11A12250B	CLS-RO11 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Oval - Illuminated	Oval - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Green, Yellow, Black, Red, Blue
Current Rating (Amps)	-	20 A
Illumination Type, Color	LED, Blue	LED, Green, Yellow, Red, Blue
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Snap-In, Panel Mount, Threaded Body with Nut
Panel Cutout Dimensions	-	17.8 mm
Panel Cutout Dimensions	-	35.2 mm
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

CLS-RO11 Series

SWITCH ROCKER SPST 20A 12V

Part	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Current Rating (Amps)	Actuator Marking	Actuator Type	Circuit	Mounting Type	Color - Actuator/Cap	Illumination Type, Color	Switch Function	Panel Cutout Dimensions [diameter]
Lumex Opto/Components Inc. CLS-RO11A12251G	12 V	17.8 mm	35.2 mm	Quick Connect - 0.250" (6.3mm)	20 A	No Marking	Oval - Illuminated	SPST	Panel Mount, Snap-In	Green	Green, LED	On-Off
Lumex Opto/Components Inc. CLS-RO11A12251Y	12 V	17.8 mm	35.2 mm	Quick Connect - 0.250" (6.3mm)	20 A	No Marking	Oval - Illuminated	SPST	Panel Mount, Snap-In	Yellow	LED, Yellow	On-Off
Lumex Opto/Components Inc. CLS-RO11A12250R	12 V			Quick Connect - 0.250" (6.3mm)		No Marking	Oval - Illuminated	SPST	Panel Mount, Threaded Body with Nut	Black	LED, Red	On-Off	12.2 mm
Lumex Opto/Components Inc. CLS-RO11A12250G	12 V			Quick Connect - 0.250" (6.3mm)		No Marking	Oval - Illuminated	SPST	Panel Mount, Threaded Body with Nut	Black	Green, LED	On-Off	12.2 mm
Lumex Opto/Components Inc. CLS-RO11A12251R	12 V	17.8 mm	35.2 mm	Quick Connect - 0.250" (6.3mm)	20 A	No Marking	Oval - Illuminated	SPST	Panel Mount, Snap-In	Red	LED, Red	On-Off
Lumex Opto/Components Inc. CLS-RO11A12250Y	12 V			Quick Connect - 0.250" (6.3mm)		No Marking	Oval - Illuminated	SPST	Panel Mount, Threaded Body with Nut	Black	LED, Yellow	On-Off	12.2 mm
Lumex Opto/Components Inc. CLS-RO11A12250B	12 V			Quick Connect - 0.250" (6.3mm)		No Marking	Oval - Illuminated	SPST	Panel Mount, Threaded Body with Nut	Black	Blue, LED	On-Off	12.2 mm
Lumex Opto/Components Inc. CLS-RO11A12251B	12 V	17.8 mm	35.2 mm	Quick Connect - 0.250" (6.3mm)	20 A	No Marking	Oval - Illuminated	SPST	Panel Mount, Snap-In	Blue	Blue, LED	On-Off
