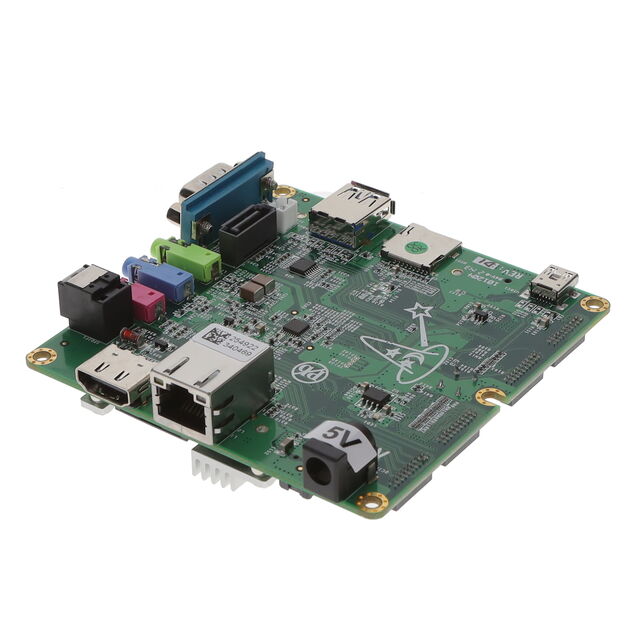

WB-IMX6Q-9377

Active

Wandboard.Org

SBC 4 CORE 2GB/0GB RAM

Search across all available documentation for this part.

Active

Wandboard.Org

SBC 4 CORE 2GB/0GB RAM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 200.07

General part information

Single Board Computer 4 Core 2GB/0GB RAM ARM Cortex-A9, i.MX6Quad

Technical documentation and resources

No documents available

Specification	WB-IMX6Q-9377	WB-IMX6 Series

Core Processor	i.MX6Quad, ARM Cortex-A9	ARM Cortex-A9, i.MX6DualLite, i.MX6Quad
Expansion Site/Bus	SATA	SATA
Number of Cores	4	2 - 4
RAM Capacity/Installed	0 GB, 2 GB	0 - 2 GB
Size / Dimension [x]	3.74 "	3.74 "
Size / Dimension [x]	94.99 mm	94.99 mm
Size / Dimension [y]	3.74 "	3.74 "
Size / Dimension [y]	94.99 mm	94.99 mm
USB [custom]	1	1
USB [custom]	1	1
Video Outputs	HDMI	HDMI
Watchdog Timer	False	False

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Watchdog Timer	Number of Cores	Core Processor	Video Outputs	USB [custom]	USB [custom]	RAM Capacity/Installed	Expansion Site/Bus
Wandboard.Org WB-IMX6U-9377	3.74 "	3.74 "	94.99 mm	94.99 mm		2	ARM Cortex-A9, i.MX6DualLite	HDMI	1	1	0 GB, 1 GB
Wandboard.Org WB-IMX6Q-9377	3.74 "	3.74 "	94.99 mm	94.99 mm		4	ARM Cortex-A9, i.MX6Quad	HDMI	1	1	0 GB, 2 GB	SATA
