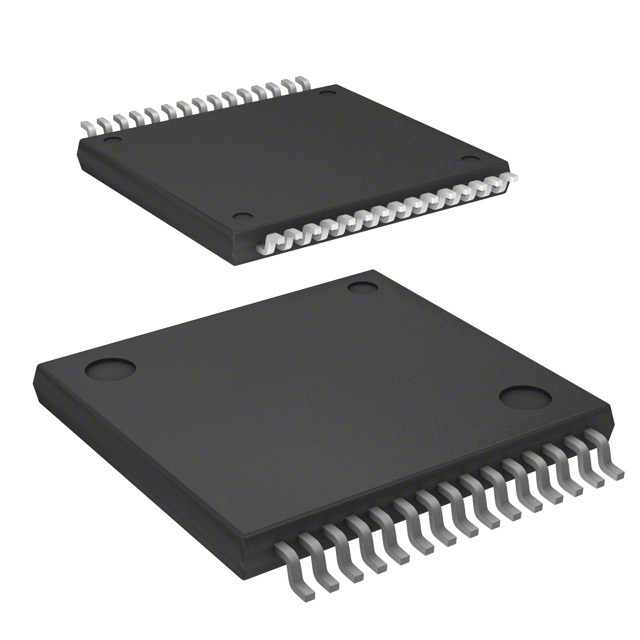

VND5E004A30-E
ActiveSTMicroelectronics
IC PWR DRIVER N-CHAN 1:1 PWRSO30
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VND5E004A30-E
ActiveSTMicroelectronics
IC PWR DRIVER N-CHAN 1:1 PWRSO30
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VND5E004A30-E |
|---|---|
| Current - Output (Max) [Max] | 65 A |
| Fault Protection | Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect |
| Features | Auto Restart |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 30-PowerSOP |
| Package / Case [y] | 16 mm |
| Package / Case [y] | 0.63 in |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 3 mOhm |
| Supplier Device Package | 30-MultiPowerSO |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 28 V |
| Voltage - Load [Min] | 4.5 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VND5E004 Series
IC PWR DRIVER N-CHAN 1:1 PWRSO30
| Part | Input Type | Interface | Voltage - Load [Max] | Voltage - Load [Min] | Rds On (Typ) | Current - Output (Max) [Max] | Fault Protection | Supplier Device Package | Switch Type | Operating Temperature [Max] | Operating Temperature [Min] | Ratio - Input:Output [custom] | Output Type | Features | Mounting Type | Voltage - Supply (Vcc/Vdd) | Output Configuration | Number of Outputs | Package / Case [y] | Package / Case | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VND5E004A30-E | Non-Inverting | On/Off | 28 V | 4.5 V | 3 mOhm | 65 A | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 30-MultiPowerSO | General Purpose | 150 °C | -40 °C | 1:1 | N-Channel | Auto Restart | Surface Mount | High Side | 2 | 16 mm | 30-PowerSOP | 0.63 in |
Description
General part information
VND5E004 Series
Power Switch/Driver 1:1 N-Channel 65A 30-MultiPowerSO
