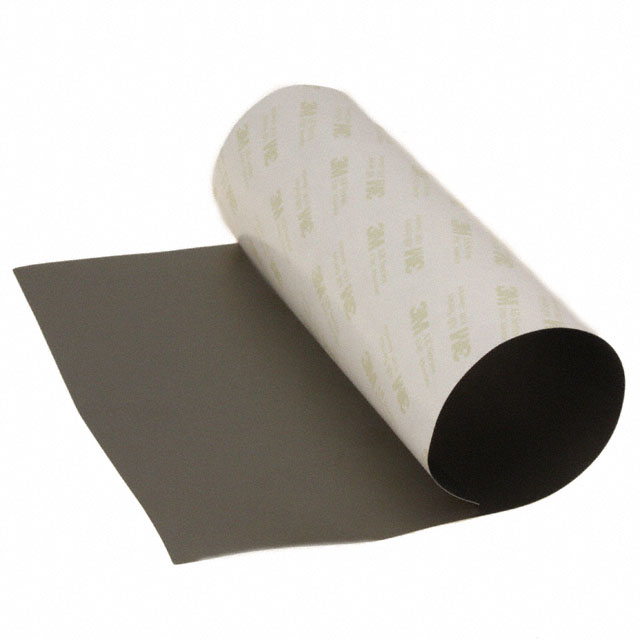

AB7010HF

Active

3M (TC)

RF ABSORB SHEET 11.693"X8.268"

Search across all available documentation for this part.

Active

3M (TC)

RF ABSORB SHEET 11.693"X8.268"

Technical Specifications

Parameters and characteristics for this part

Specification	AB7010HF

Adhesive	Single Sided, Non-Conductive
Length [x]	11.693 in
Length [x]	297 mm
Material	Metal Flakes, Polymer Resin
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall [z]	0.13 mm
Thickness - Overall [z]	0.005 in
Type	Absorbing Sheet
Width [x]	210 mm
Width [x]	8.268 in

Part	Shape	Shelf Life	Length [x]	Length [x]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Material	Type	Shelf Life Start	Operating Temperature [Min]	Operating Temperature [Max]	Width [x]	Width [x]	Adhesive	Thickness - Overall [z]	Thickness - Overall [z]
3M (TC) AB7010HF	Rectangular	12 Months	11.693 in	297 mm	70 °F	21 °C	Metal Flakes Polymer Resin	Absorbing Sheet	Date of Shipment	-25 °C	85 °C	210 mm	8.268 in	Non-Conductive Single Sided	0.13 mm	0.005 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Absorbing Sheet AB7000HF Polymer Resin, Metal Flakes Non-Conductive, Single Sided 8.268" (210.00mm) X 11.693" (297.00mm) X 0.005" (0.13mm)
