Description
General part information

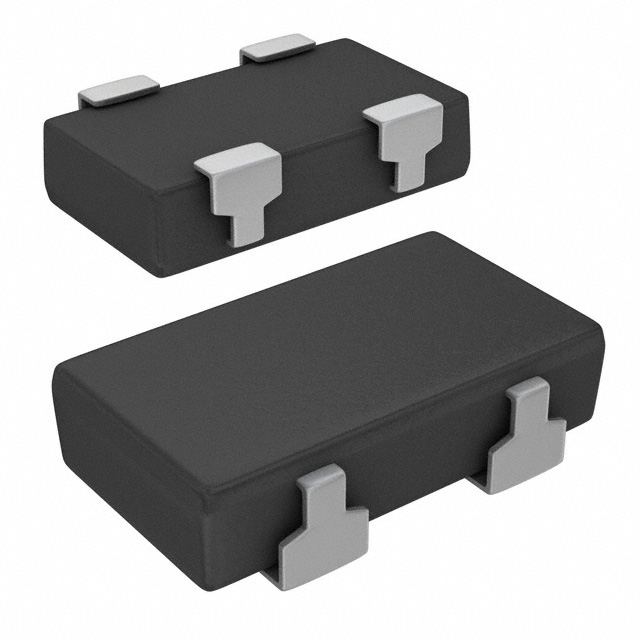

SG-8003LB MPL0 2.5V
XO (Standard) CMOS 1 MHz ~ 166 MHz Programmable Oscillator 3.3V Standby 4-TESOP (0.110", 2.80mm Width)
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-8003LB MPL0 2.5V |
|---|---|
| Available Frequency Range (Maximum) | 166 MHz |
| Available Frequency Range (Minimum) | 1 MHz |
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 50 µA |
| Current - Supply (Max) | 15 mA |
| Frequency Stability | 100 ppm, 50 ppm |
| Function | Standby |
| Height - Seated (Max) | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C, 85 °C |
| Operating Temperature (Min) | -20 °C, -40 °C |
| Output | CMOS |
| Package Length | 0.11 in |
| Package Name | 4-TESOP |
| Package Width | 2.8 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.11 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V, 2.5 V |
