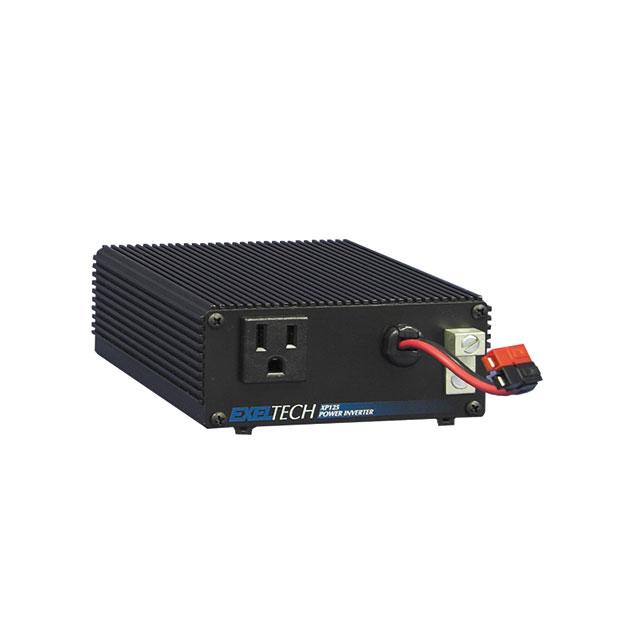

XP1-1-4-6-2

Active

Exeltech

DC TO AC POWER INVERTER, 125WATT

Search across all available documentation for this part.

Active

Exeltech

DC TO AC POWER INVERTER, 125WATT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XP1-1-4-6-2	XP1-1 Series

AC Outlets	1	1
Connector - AC Output	NEMA 5-15R	NEMA 5-15R
Connector - Voltage Input	Wire Leads	Cigarette Lighter Plug, Wire Leads
Power - Output Continuous	125 W	125 W
Power - Output Surge	150 W	150 W
Region Utilized	North America	North America
Remote Capability	False	False
Size [x]	200.7 mm	200.7 mm
Size [x]	7.9 in	7.9 in
Size [y]	4.93 in	4.93 in
Size [y]	125.2 mm	125.2 mm
Size [z]	54.9 mm	54.9 mm
Size [z]	2.16 in	2.16 in
Voltage - Input	48 VDC	12 - 48 VDC
Voltage - Output	120 VAC	120 VAC

DC TO AC POWER INVERTER, 125WATT

Part	Connector - Voltage Input	Remote Capability	Region Utilized	Voltage - Input	Power - Output Continuous	Power - Output Surge	Voltage - Output	AC Outlets	Size [z]	Size [y]	Size [z]	Size [y]	Size [x]	Size [x]	Connector - AC Output
Exeltech XP1-1-1-6-1	Cigarette Lighter Plug		North America	12 VDC	125 W	150 W	120 VAC	1	54.9 mm	4.93 in	2.16 in	125.2 mm	200.7 mm	7.9 in	NEMA 5-15R
Exeltech XP1-1-4-6-2	Wire Leads		North America	48 VDC	125 W	150 W	120 VAC	1	54.9 mm	4.93 in	2.16 in	125.2 mm	200.7 mm	7.9 in	NEMA 5-15R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 429.00

General part information

48VDC Voltage Input 125 W Power Output Continuous Inverter 1 AC Outlets NEMA 5-15R North America

Technical documentation and resources

No documents available
