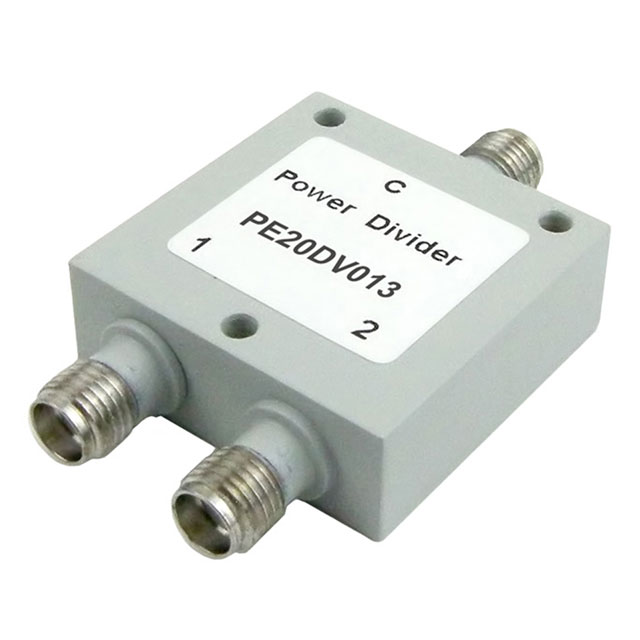

PE20DV013
ActivePasternack
2 WAY 20W DIV SMA 1-4GHZ
PE20DV013
ActivePasternack
2 WAY 20W DIV SMA 1-4GHZ
Description
General part information
PE20DV013
RF Power Divider 1 GHz ~ 4 GHz Isolation (Min) 20dB, 2° Imbalance (Max), 1.3 VSWR (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | PE20DV013 |
|---|---|
| Frequency (Max) | 4 GHz |
| Frequency (Min) | 1 GHz |
| Imbalance (Max) | 2 ° |
| Insertion Loss | 3.5 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.404 in |
| Size / Dimension Length | 1.102 in |
| Size / Dimension Width | 1.102 in |
| VSWR (Max) | 1.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
