Description
General part information

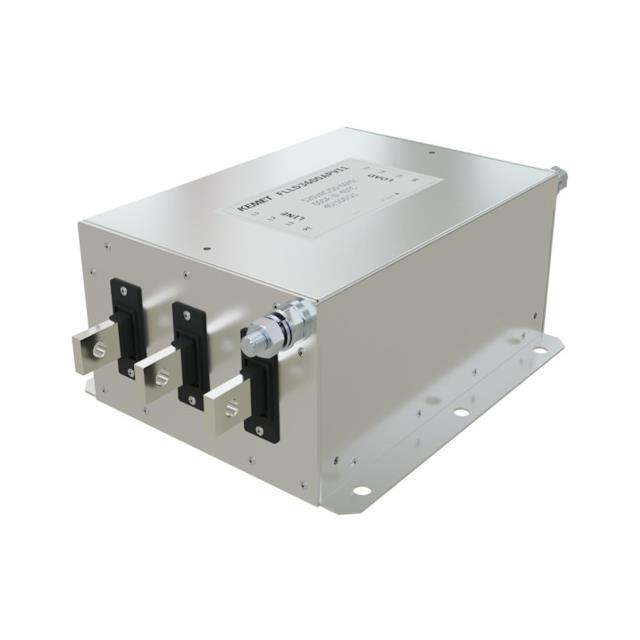

FLLD3400APHI1
Three Phase (Delta) EMC/EMI Line Filter 400 A 50 ~ 60Hz Two Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | FLLD3400APHI1 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UL |
| Configuration | Two Stage |
| Current | 400 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 400 V |
| Voltage - Rated AC (Phase to Phase) | 690 V |
