VZ30F4B8196812L
ObsoleteVybronics Inc

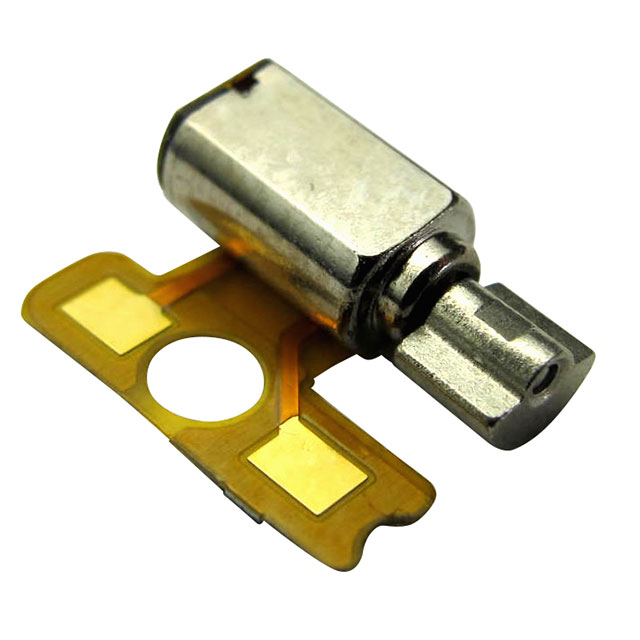

VIBRATION MOTOR 14K RPM 0.4G
Deep-Dive with AI
Search across all available documentation for this part.
VZ30F4B8196812L
ObsoleteVybronics Inc
VIBRATION MOTOR 14K RPM 0.4G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VZ30F4B8196812L |
|---|---|
| Function | ERM, Vibration |
| Length - Shaft and Bearing [x] | 3.8 mm |
| Length - Shaft and Bearing [x] | 0.15 " |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| RPM | 14000 RPM |
| Termination Style | Solder Tab |
| Type | DC Motor |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.63 | |
| 5 | $ 2.49 | |||
| 10 | $ 2.42 | |||
| 25 | $ 2.35 | |||
| 50 | $ 2.14 | |||
| 100 | $ 1.94 | |||
| 300 | $ 1.87 | |||
| 500 | $ 1.84 | |||
Description
General part information
VZ30F4B8196812L
DC Motor Vibration, ERM 14000 RPM 2.7VDC
Documents
Technical documentation and resources
