HSDC-JAKIT1W2/DB
ObsoleteNXP USA Inc.
DAC/ADC LATTICE KIT
HSDC-JAKIT1W2/DB
ObsoleteNXP USA Inc.
DAC/ADC LATTICE KIT
Description
General part information
HSDC-JAKIT1W2/DB

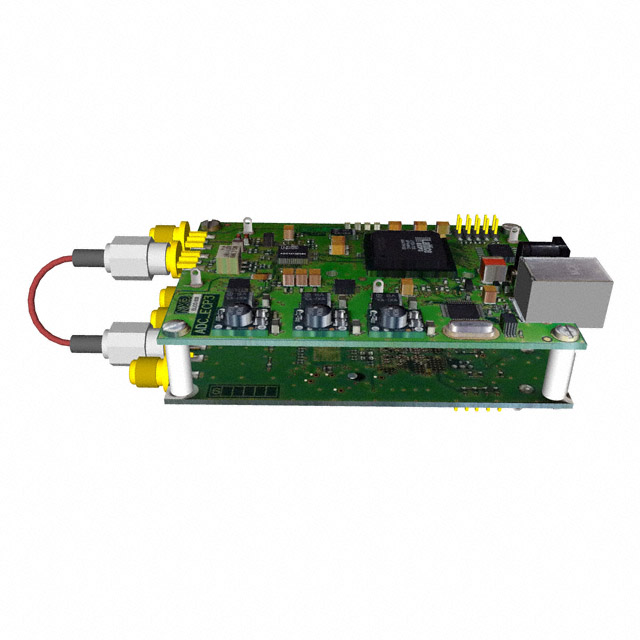

ADC1413D, DAC1408D, ECP3 FPGA ADC/DAC for Lattice ECP3 FPGA Interface Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | HSDC-JAKIT1W2/DB |
|---|---|
| Contents | Board, Cable |
| Embedded | FPGA, Yes, CPLD |
| Function | ADC, DAC for Lattice ECP3 FPGA |
| Primary Attributes | Loop Back Demo with 2 High Speed Converters |
| Secondary Attributes | USB Powered |
| Supplied Contents | Board(s), Cable(s) |
| Type | Interface |
| Utilized IC / Part | ECP3 FPGA, DAC1408D, ADC1413D |
