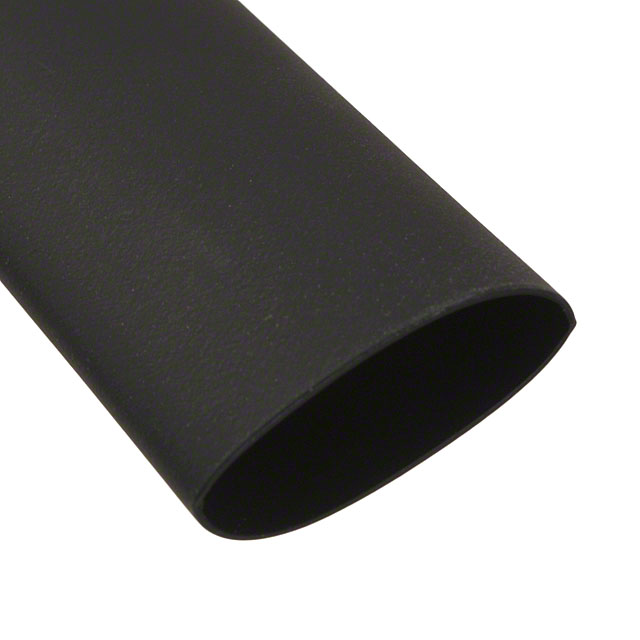

SM278-3/4"

Active

Daburn Electronics

HEATSHRINK 4:1 DUAL BLK 3/4"X4'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM278-3/4"

Active

Daburn Electronics

HEATSHRINK 4:1 DUAL BLK 3/4"X4'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.01
		2	$ 25.75
		3	$ 24.53
		5	$ 23.06
		7	$ 22.14
		10	$ 21.21
		25	$ 18.98
		50	$ 17.46
		100	$ 16.85

Description

General part information

SM278 Series

Heat Shrink Tubing, Flexible 0.630" (16.00mm) 4 to 1 Black 4.00' (1.22m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SM278-3/4"	SM278 Series

Color	Black	Black
Features	Adhesive Lined, Fluid Resistant	Adhesive Lined, Fluid Resistant
Inner Diameter - Recovered	-	0.079 in
Inner Diameter - Recovered	-	2.01 mm
Inner Diameter - Recovered [diameter]	3.99 mm	0.99 - 3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in	0.039 - 0.157 in
Inner Diameter - Supplied	-	8 mm
Inner Diameter - Supplied [diameter]	16 mm	0.315 - 16 mm
Inner Diameter - Supplied [diameter]	0.63 in	0.157 - 0.63 in
Length	-	0.75 - 6 "
Length	-	1.52 - 152.4 mm
Length	-	0.062 - 50 ft
Length	-	4 "
Length	-	Enter Number of Feet in Order Quantity
Length	-	0.5 '
Length [x]	1.22 m	1.22 - 101.6 mm
Length [x]	4 ft	0.333 - 200 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	-	0.89 mm
Recovered Wall Thickness	-	0.035 in
Recovered Wall Thickness [custom]	0.063 "	0.063 "
Recovered Wall Thickness [custom]	1.6 mm	1.6 mm
Shelf Life	36 Months	36 Months
Shrink Temperature	120 °C	120 °C
Shrinkage Ratio	4 to 1	4 to 1
Spool Size	-	61 m
Spool Size	-	200 '
Type	Tubing, Flexible	Tubing, Flexible

SM278 Series

HEATSHRINK DUAL WALL BK 3/16FOOT

Part	Length	Length	Length	Type	Length [x]	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Material	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Spool Size	Spool Size	Length	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Shelf Life	Features	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]	Length	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
Daburn Electronics SM278-3/16"	0.75 ", 1 in, 1.5 ", 3 "	15.2 m, 19.05 mm, 25.4 mm, 38.1 mm, 76.2 mm	0.062 ', 0.083 ft, 0.125 ', 0.25 ft, 50 ft	Tubing, Flexible	4 "	0.333 ft, 100 ft, 200 ft	30.5 m, 61 m, 101.6 mm	135 °C	-55 °C	4 to 1	Polyolefin (PO)	0.89 mm	0.035 in	3.99 mm	0.157 in	61 m	200 '	Enter Number of Feet in Order Quantity	Black	0.039 in	0.99 mm	120 °C	36 Months	Adhesive Lined, Fluid Resistant
Daburn Electronics SM278-5/16"	0.75 ", 1 in, 1.5 ", 3 ", 6 "	1.52 m, 7.6 m, 19.05 mm, 25.4 mm, 38.1 mm, 76.2 mm, 152.4 mm	0.062 ', 0.083 ft, 0.125 ', 0.25 ft, 5 ', 25 ft	Tubing, Flexible	4 "	0.333 ft, 100 ft, 200 ft	30.5 m, 61 m, 101.6 mm	135 °C	-55 °C	4 to 1	Polyolefin (PO)	0.89 mm	0.035 in	0.315 in		61 m	200 '	Enter Number of Feet in Order Quantity	Black			120 °C	36 Months	Adhesive Lined, Fluid Resistant	0.079 in	2.01 mm	8 mm	0.5 '
Daburn Electronics SM278-3/4"				Tubing, Flexible		4 ft	1.22 m	135 °C	-55 °C	4 to 1	Polyolefin (PO)			16 mm	0.63 in				Black	0.157 in	3.99 mm	120 °C	36 Months	Adhesive Lined, Fluid Resistant					0.063 "	1.6 mm
