788189-2

Active

TE Connectivity AMP Connectors

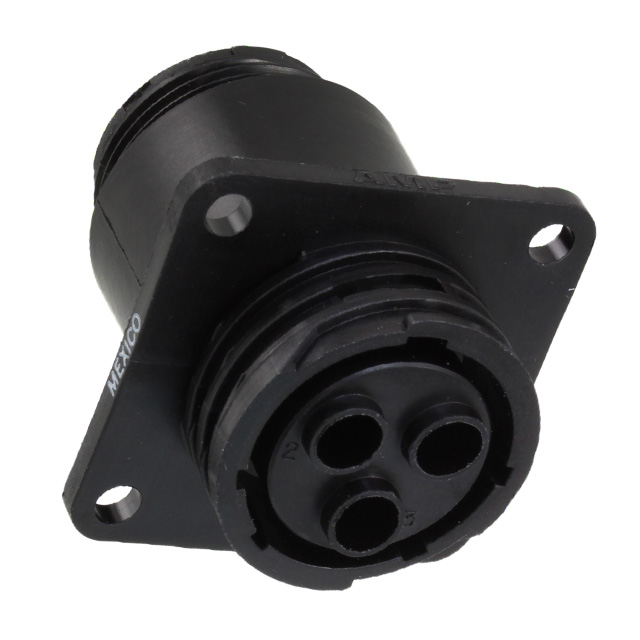

CONN RCPT HSNG FMALE 3POS PNL MT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG FMALE 3POS PNL MT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	788189-2	788189 Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	8 Power	8 Power
Contact Type	Crimp	Crimp
Housing Color	Black	Black
Ingress Protection	IP67, IP65	IP67, IP65
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Note	Contacts Not Included	Contacts Not Included
Number of Positions	3	3
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Shell Size - Insert	17-3	17-3
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN RCPT HSNG FMALE 3POS PNL MT

Part	Contact Type	Orientation	Material Flammability Rating	Number of Positions	Shell Size - Insert	Contact Shape	Insert Material	Housing Color	Contact Size	Ingress Protection	Connector Type	Shielding	Note	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Type
TE Connectivity AMP Connectors 788189-2	Crimp	Keyed	UL94 V-0	3	17-3	Circular	Thermoplastic	Black	8 Power	IP65, IP67	Receptacle Housing	Unshielded	Contacts Not Included	Flange	105 ░C	-55 °C	For Female Sockets
TE Connectivity AMP Connectors 788189-1	Crimp	Keyed	UL94 V-0	3	17-3	Circular	Thermoplastic	Black	8 Power	IP65, IP67	Receptacle Housing	Unshielded	Contacts Not Included	Flange	105 ░C	-55 °C	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Receptacle Housing Panel Mount
