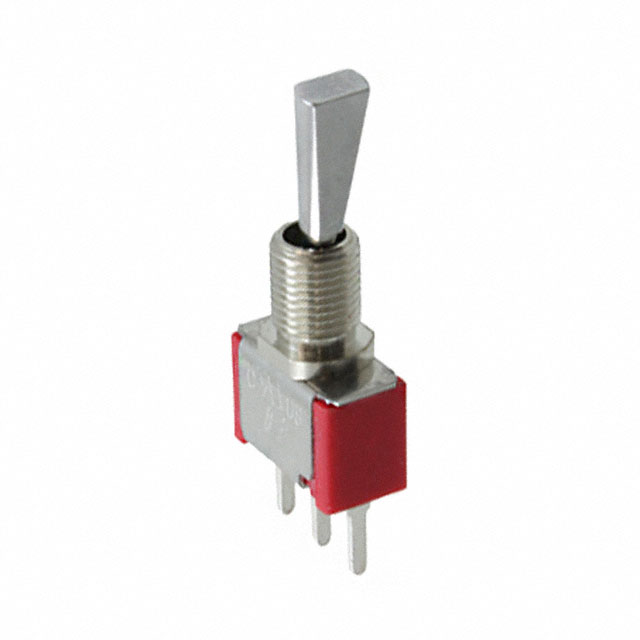

100SP2T6B11M2QE

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100SP2T6B11M2QE

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100SP2T6B11M2QE	100SP2 Series

Actuator Length [x]	12.3 mm	5.08 - 18 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Flat Anti-Rotation	Flat Anti-Rotation, Standard Round
Bushing Thread	1/4-40	1/4-40, Unthreaded, 15/32-32, M6 x 0.75
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole, Through Hole, Right Angle, Vertical, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 in
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	Solder Lug, PC Pin, Quick Connect - 0.062" (1.5mm)
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100SP2 Series

SWITCH TOGGLE SPDT 5A 120V

Part	Actuator Type	Actuator Material	Electrical Life	Voltage Rating - DC	Termination Style	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Current Rating (Amps)	Bushing Thread	Switch Function	Features	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Circuit	Mounting Type
E-Switch 100SP2T6B11M1QEH	Flat Anti-Rotation	Brass, Chrome Plated	40000 Cycles	28 V	Solder Lug	0.25 in	120 V	5 A	1/4-40	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	12.3 mm	SPDT
E-Switch 100SP2T3B3VS2QE	Standard Round	Brass, Chrome Plated	40000 Cycles	28 V	PC Pin	0.25 in	120 V	5 A	1/4-40	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	15.75 mm	SPDT
E-Switch 100SP2T1B2M2QE	Standard Round	Brass, Chrome Plated	40000 Cycles	28 V	PC Pin		120 V	5 A	Unthreaded	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	10.41 mm	SPDT	Through Hole
E-Switch 100SP2T1B1M1QEH	Standard Round	Brass, Chrome Plated	40000 Cycles	28 V	Solder Lug	0.25 in	120 V	5 A	1/4-40	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	10.41 mm	SPDT
E-Switch 100SP2T3B3VS2QEH	Standard Round	Brass, Chrome Plated	40000 Cycles	28 V	PC Pin	0.25 in	120 V	5 A	1/4-40	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	13.97 mm	SPDT
E-Switch 100SP2T1B2M1QE	Standard Round	Brass, Chrome Plated	40000 Cycles	28 V	Solder Lug	0.25 in	120 V	5 A	Unthreaded	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	10.41 mm	SPDT
E-Switch 100SP2T8B13M1RE	Standard Round	Brass, Chrome Plated	40000 Cycles	20 V	Solder Lug	11.91 mm	20 V	0.4 VA	15/32-32	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	18 mm	SPDT
E-Switch 100SP2T8B13VS2REH	Standard Round	Brass, Chrome Plated	40000 Cycles	20 V	PC Pin	11.91 mm	20 V	0.4 VA	15/32-32	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	18 mm	SPDT	Through Hole
E-Switch 100SP2T2B4M6RE	Standard Round	Brass, Chrome Plated	40000 Cycles	20 V	PC Pin		20 V	0.4 VA	Unthreaded	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	5.08 mm	SPDT	Through Hole, Right Angle
E-Switch 100SP2T1B1M2QEH	Standard Round	Brass, Chrome Plated	40000 Cycles	28 V	PC Pin	0.25 in	120 V	5 A	1/4-40	On-Mom	Epoxy Sealed Terminals	Non-Illuminated	-30 ░C	85 °C	10.41 mm	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.83
		10	$ 3.43
		25	$ 3.25
		50	$ 3.09
		100	$ 2.95
		270	$ 2.82
		540	$ 2.58
		1080	$ 2.46

Description

General part information

100SP2 Series

Toggle Switch SPDT Panel Mount
