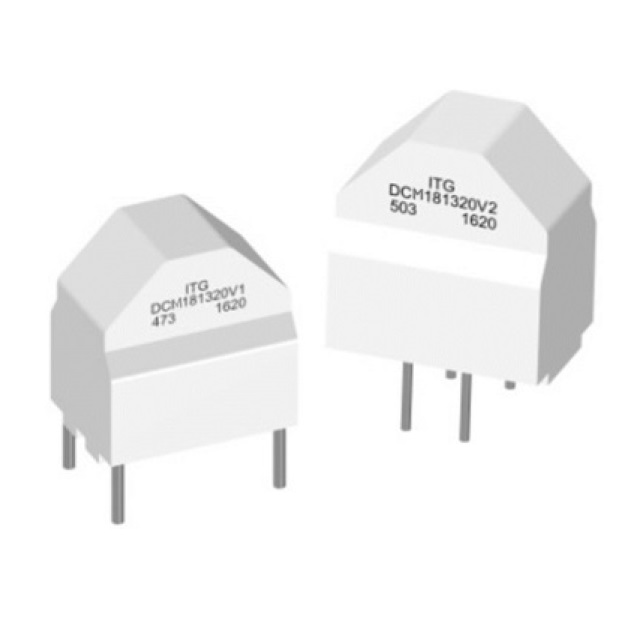

DCM181320V1-332NHF
ActiveITG Electronics, Inc.
3300UH, 140 MOHM DCR, DIP CMC
DCM181320V1-332NHF
ActiveITG Electronics, Inc.
3300UH, 140 MOHM DCR, DIP CMC
Description
General part information
DCM181320V1-332NHF
3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 140mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | DCM181320V1-332NHF |
|---|---|
| Current Rating (Max) | 1.5 A |
| DC Resistance (DCR) (Max) | 140 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.807 in |
| Inductance | 3.3 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.728 in |
| Size / Dimension Width | 0.531 in |
| Voltage Rating - AC | 250 V |
