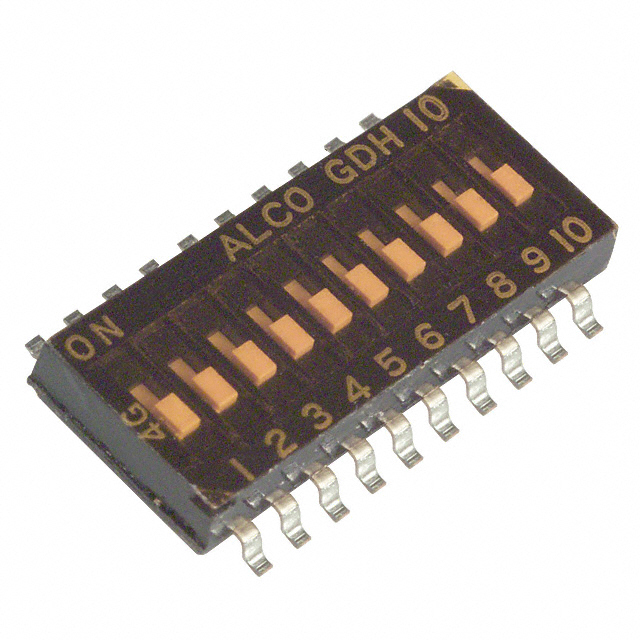

1-1571983-4

Active

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Circuit	Contact Finish	Current Rating (Amps)	Body Material	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Washable	Length [x]	Length [x]	Contact Material	Features	Pitch [x]	Pitch [x]	Actuator Level	Voltage Rating	Actuator Type	Height Above Board [z]	Height Above Board [z]	Mechanical Life	Mounting Type	Number of Positions
TE Connectivity ALCOSWITCH Switches 1-1571983-4	SPST	Gold	25 mA	Polyphenylene Sulfide (PPS)	1000 Cycles	Gull Wing	-30 ░C	85 °C		0.544 in	13.82 mm	Copper Alloy	Tape Seal	0.05 in	1.27 mm	Flush, Recessed	24 VDC	Slide (Standard)	0.091 in	2.3 mm	1000 Cycles	Surface Mount	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
