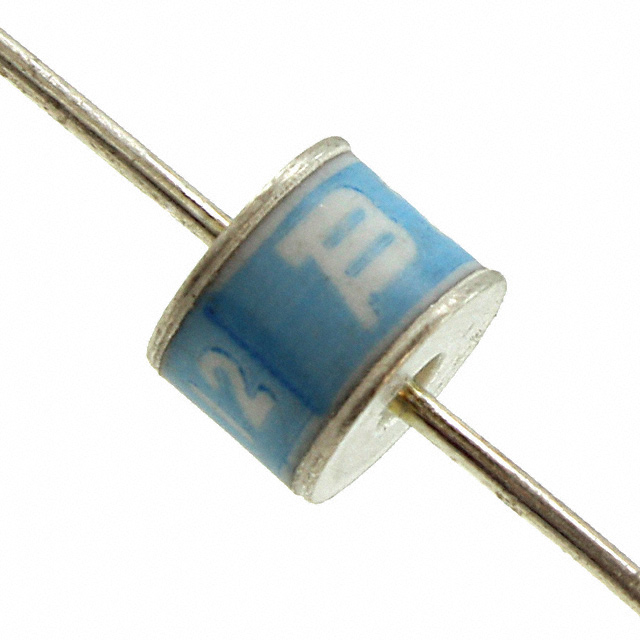

2027-30-BLF

Active

Bourns Inc.

GDT 300V 10KA 2 POLE TH

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 300V 10KA 2 POLE TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2027-30-BLF	2027 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	10000 A	10000 A
Impulse Discharge Current (8/20µs)	10 kA	10 kA
Mounting Type	Through Hole	User Defined, Through Hole, Surface Mount
Number of Poles	2	2
Package / Case	Axial Cylinder	Cylinder No Lead, Axial Cylinder, Axial Cylinder, Radial Bend, 2-SMD Cylinder Square End
Tolerance	15 %	15 - 20 %
Voltage - DC Spark Over (Nom)	300 V	75 - 600 V

GDT 420V 10KA 2 POLE

...

Part	Number of Poles	Package / Case	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Mounting Type	Voltage - DC Spark Over (Nom)	Tolerance
Bourns Inc. 2027-42-ALF	2	Cylinder No Lead	10000 A	10 kA	User Defined	420 V	15 %
Bourns Inc. 2027-23-B	2	Axial Cylinder	10000 A	10 kA	Through Hole	230 V	15 %
Bourns Inc. 2027-47-A	2	Cylinder No Lead	10000 A	10 kA	User Defined	470 V	15 %
Bourns Inc. 2027-15-BT1LF	2	Axial Cylinder	10000 A	10 kA	Through Hole	150 V	15 %
Bourns Inc. 2027-07-B10LF	2	Axial Cylinder, Radial Bend	10000 A	10 kA	Through Hole	75 V	20 %
Bourns Inc. 2027-09-SM	2	2-SMD Cylinder Square End	10000 A	10 kA	Surface Mount	90 V	20 %
Bourns Inc. 2027-09-B10LF	2	Axial Cylinder, Radial Bend	10000 A	10 kA	Through Hole	90 V	20 %
Bourns Inc. 2027-60-SM	2	2-SMD Cylinder Square End	10000 A	10 kA	Surface Mount	600 V	15 %
Bourns Inc. 2027-15-BLF	2	Axial Cylinder	10000 A	10 kA	Through Hole	150 V	15 %
Bourns Inc. 2027-15-ALF	2	Cylinder No Lead	10000 A	10 kA	User Defined	150 V	15 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas Discharge Tube 300 V 10000A (10kA) ±15% 2 Pole Through Hole
