Description
General part information

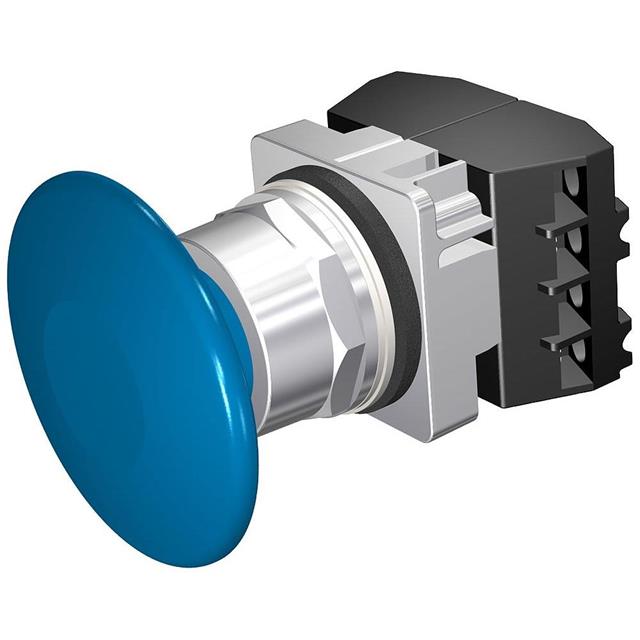

52PP7V5U
Pushbutton Switch DPST-NC Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 52PP7V5U |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | DPST-NC |
| Current Rating | 60 A |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -35 °C |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 110 V |
