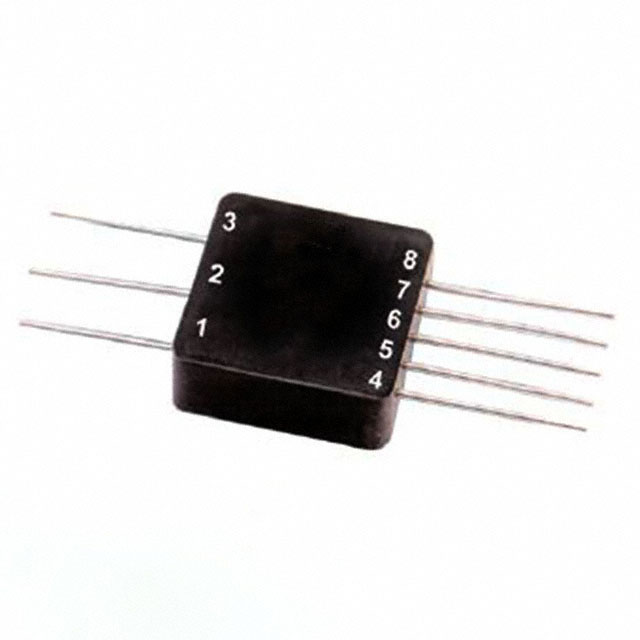

QC1553-84

Active

iNRCORE, LLC

TRANSFORMER PBC

Search across all available documentation for this part.

Active

iNRCORE, LLC

TRANSFORMER PBC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	33	$ 40.16

General part information

MIL-STD-1553 Pulse Transformer 1CT:2.12CT, 1CT:1.5CT Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	QC1553-84	QC1553 Series

Height - Seated (Max)	6.35 mm	6.35 mm
Height - Seated (Max) [Max]	0.25 in	0.25 in
Mounting Type	Through Hole	Through Hole
Size / Dimension [x]	0.624 in	0.5 - 0.624 in
Size / Dimension [x]	15.86 mm	12.7 - 15.86 mm
Size / Dimension [y]	15.86 mm	8.89 - 15.86 mm
Size / Dimension [y]	0.624 in	0.35 - 0.624 in
Transformer Type	MIL-STD-1553	MIL-STD-1553
Turns Ratio - Primary:Secondary	-	2CT, 1CT
Turns Ratio - Primary:Secondary	-	1CT
Turns Ratio - Primary:Secondary [custom]	1.5 CT, 2.12 CT	0.707 - 2.5
Turns Ratio - Primary:Secondary [custom]	1	1 - 2

TRANSFORMER PBC

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Transformer Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]
iNRCORE, LLC QC1553-3	Through Hole	15.86 mm	0.624 in	15.86 mm	0.624 in	1	1.25, 1.66 CT	MIL-STD-1553	6.35 mm	0.25 in
iNRCORE, LLC QC1553-22	Through Hole	8.89 mm	0.5 in	12.7 mm	0.35 "	1.41	1	MIL-STD-1553	6.35 mm	0.25 in
iNRCORE, LLC QC1553-20	Through Hole	8.89 mm	0.5 in	12.7 mm	0.35 "	1.14	1	MIL-STD-1553	6.35 mm	0.25 in
iNRCORE, LLC QC1553-84	Through Hole	15.86 mm	0.624 in	15.86 mm	0.624 in	1.5 CT, 2.12 CT	1	MIL-STD-1553	6.35 mm	0.25 in
iNRCORE, LLC QC1553-23	Through Hole	8.89 mm	0.5 in	12.7 mm	0.35 "	1.66 CT	1	MIL-STD-1553	6.35 mm	0.25 in
iNRCORE, LLC QC1553-1	Through Hole	15.86 mm	0.624 in	15.86 mm	0.624 in	0.707 CT, 1	1	MIL-STD-1553	6.35 mm	0.25 in
iNRCORE, LLC QC1553-2	Through Hole	15.86 mm	0.624 in	15.86 mm	0.624 in	1	1.4 CT, 2 CT	MIL-STD-1553	6.35 mm	0.25 in
iNRCORE, LLC QC1553-24	Through Hole	8.89 mm	0.5 in	12.7 mm	0.35 "			MIL-STD-1553	6.35 mm	0.25 in	2CT	1CT
iNRCORE, LLC QC1553-85	Through Hole	15.86 mm	0.624 in	15.86 mm	0.624 in	1.79 CT, 2.5	1	MIL-STD-1553	6.35 mm	0.25 in
iNRCORE, LLC QC1553-45	Through Hole	15.86 mm	0.624 in	15.86 mm	0.624 in	1.79 CT, 2.5	1	MIL-STD-1553	6.35 mm	0.25 in
