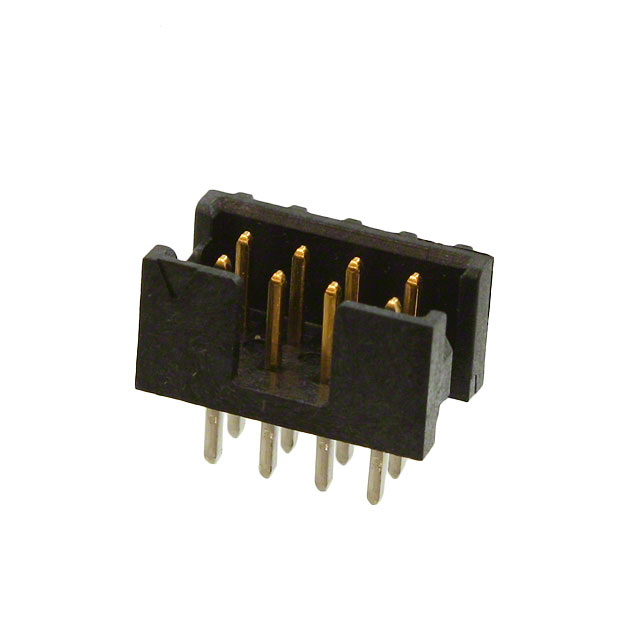

CONN HEADER VERT 8POS 2MM

Search across all available documentation for this part.

Active

CONN HEADER VERT 8POS 2MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	159108-6012	159108 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.61 mm	3.61 mm
Contact Length - Mating	0.142 in	0.142 in
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	5.33 mm	5.33 mm
Insulation Height	0.21 in	0.21 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	150 VDC	150 VDC

CONN HEADER SMD 8POS 2MM

Part	Insulation Color	Number of Rows	Insulation Height	Insulation Height	Shrouding	Material Flammability Rating	Contact Finish - Post	Termination	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Type	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Mounting Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Features	Contact Shape	Contact Length - Post	Contact Length - Post
3M 159108-2012	Black	2	5.33 mm	0.21 in	Shrouded - 4 Wall	UL94 V-0	Tin	Solder	150 VDC	1.25 A	30 Áin	0.76 Ám	105 ░C	-55 °C	Board to Cable/Wire	Male Pin	Push-Pull	0.079 in	2 mm	All	Surface Mount	8	0.079 in	2 mm	Copper Alloy	Gold	3.61 mm	0.142 in	200 µin	5.08 µm	Header	Keying Slot	Square
3M 159108-6012	Black	2	5.33 mm	0.21 in	Shrouded - 4 Wall	UL94 V-0	Tin	Solder	150 VDC	1.25 A	30 Áin	0.76 Ám	105 ░C	-55 °C	Board to Cable/Wire	Male Pin	Push-Pull	0.079 in	2 mm	All	Through Hole	8	0.079 in	2 mm	Copper Alloy	Gold	3.61 mm	0.142 in	200 µin	5.08 µm	Header	Keying Slot	Square	2.84 mm	0.112 in
