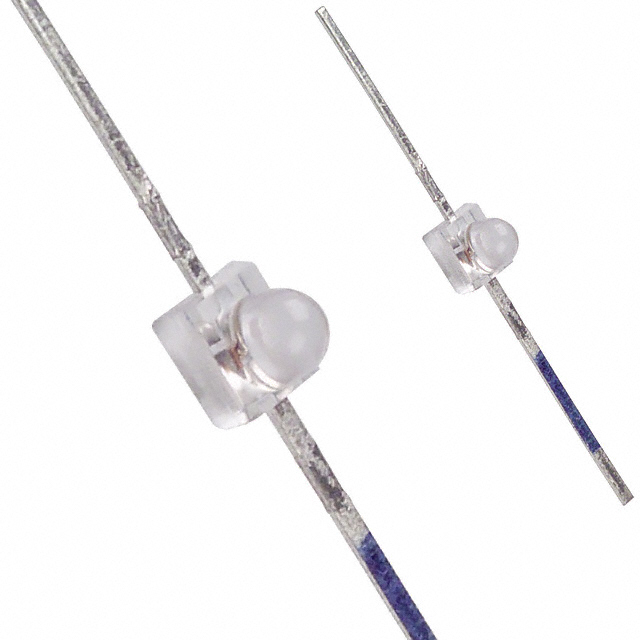

Specification	SSL-LXA228IC

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max)	2.8 mm
Lens Color	Colorless
Lens Diameter	1.9 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	30 mcd
Mounting Type	Axial, Through Hole
Package / Case	Axial, Flat Leads
Package Name	Axial
Size / Dimension Length	2.5 mm
Size / Dimension Width	2 mm
Viewing Angle	25 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	635 nm

SSL-LXA228 Series

Part	Size / Dimension Length	Size / Dimension Width	Lens Color	Current - Test	Mounting Type	Lens Diameter	Millicandela Rating	Package / Case	Package Name	Wavelength - Peak	Lens Transparency	Color	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lens Style	Configuration	Height (Max)
Lumex Opto/Components Inc. SSL-LXA228SRC-TR31	2.5 mm	2 mm	Colorless	20 mA	Bottom Entry Surface Mount	1.9 mm	350 mcd	2-SMD Z-Bend	Axial	660 nm	Clear	Red	25 °	2 V	Domed Top Round	Standard	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228YC-TR21	2.5 mm	2 mm	Colorless	20 mA	Bottom Entry Surface Mount	1.9 mm	30 mcd	2-SMD Yoke Bend	Axial	585 nm	Clear	Yellow	25 °	2 V	Domed Top Round	Standard	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228YC-TR11	2.5 mm	2 mm	Colorless	20 mA	Surface Mount	1.9 mm	30 mcd	2-SMD Gull Wing	Axial	585 nm	Clear	Yellow	25 °	2.1 V	Domed Top Round	Standard	3 mm
Lumex Opto/Components Inc. SSL-LXA228SYC-TR31	2.5 mm	2 mm	Colorless	20 mA	Surface Mount	1.9 mm	250 mcd	2-SMD Z-Bend		590 nm	Clear	Yellow	25 °	2.1 V	Domed Top Round		2.83 mm
Lumex Opto/Components Inc. SSL-LXA228SUGCTR11	2.5 mm	2 mm	Colorless	20 mA	Surface Mount	1.9 mm	200 mcd	2-SMD Gull Wing	Axial	574 nm	Clear	Green	25 °	2.2 V	Domed Top Round	Standard	3 mm
Lumex Opto/Components Inc. SSL-LXA228GC-TR31	2.5 mm	2 mm	Colorless	20 mA	Bottom Entry Surface Mount	1.9 mm	30 mcd	2-SMD Z-Bend	Z-Bend	565 nm	Clear	Green	25 °	2.1 V	Domed Top Round	Standard	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228USBCTR11	2.5 mm	2 mm	Colorless	20 mA	Surface Mount	1.9 mm	250 mcd	2-SMD Gull Wing	Axial	470 nm	Clear	Blue	25 °	3.5 V	Domed Top Round	Standard	3 mm
Lumex Opto/Components Inc. SSL-LXA228SRC-TR21	2.5 mm	2 mm	Colorless	20 mA	Bottom Entry Surface Mount	1.9 mm	600 mcd	2-SMD Yoke Bend	Axial	660 nm	Clear	Red	25 °	1.7 V	Domed Top Round	Standard	2.9 mm
Lumex Opto/Components Inc. SSL-LXA228SRD	2.5 mm	2 mm	Red	20 mA	Axial Through Hole	1.9 mm	150 mcd	Axial Flat Leads	Axial	660 nm	Diffused	Red	50 °	1.7 V	Domed Top Round	Standard	2.8 mm
Lumex Opto/Components Inc. SSL-LXA228GC-FR5	2.5 mm	2 mm	Colorless	20 mA	Through Hole	1.9 mm	30 mcd	Axial	Axial	565 nm	Clear	Green	25 °	2.2 V	Domed Top Round		3.05 mm
