3002092
ObsoletePhoenix Contact
CONN TERM BLK FEED THRU 12-28AWG
3002092
ObsoletePhoenix Contact
CONN TERM BLK FEED THRU 12-28AWG
Description
General part information
3002092

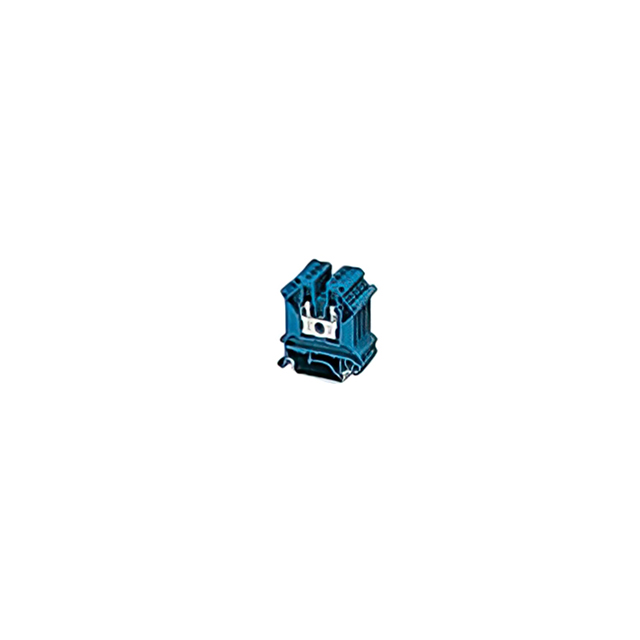

Terminal Block Connector 2 Position Feed Through Blue 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3002092 |
|---|---|
| Color | Blue |
| Current - IEC | 32 A |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-2 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 8 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
