9443MN 0081000

Active

Belden Inc.

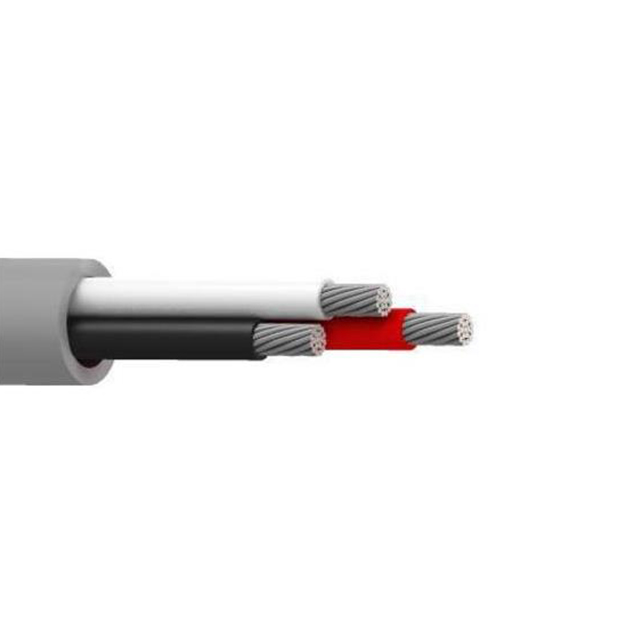

CABLE 3COND 20AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 20AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	9443MN 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	0.155 in
Jacket (Insulation) Diameter [diameter]	3.94 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2937
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket Color	Conductor Insulation	Voltage	Conductor Material	Ratings	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket (Insulation) Material	Conductor Strand	Wire Gauge	Usage	Length	Length
Belden Inc. 9443MN 004100	Yellow	Polypropylene (PP)	300 V	Copper Tinned	UL Style 2937	30.5 m	100 ft	0.406 mm	0.016 in	3	-20 C	80 C	0.155 in	3.94 mm	Multi-Conductor	Poly-Vinyl Chloride (PVC)	26 34 AWG	20 AWG	Audio Control Instrumentation
Belden Inc. 9443MN 006100	Blue	Polypropylene (PP)	300 V	Copper Tinned	UL Style 2937	30.5 m	100 ft	0.406 mm	0.016 in	3	-20 C	80 C	0.155 in	3.94 mm	Multi-Conductor	Poly-Vinyl Chloride (PVC)	26 34 AWG	20 AWG	Audio Control Instrumentation
Belden Inc. 9443MN 0081000	Gray	Polypropylene (PP)	300 V	Copper Tinned	UL Style 2937			0.406 mm	0.016 in	3	-20 C	80 C	0.155 in	3.94 mm	Multi-Conductor	Poly-Vinyl Chloride (PVC)	26 34 AWG	20 AWG	Audio Control Instrumentation	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.32

General part information

3 Conductor Multi-Conductor Cable Gray 20 AWG 1000.0' (304.8m)
