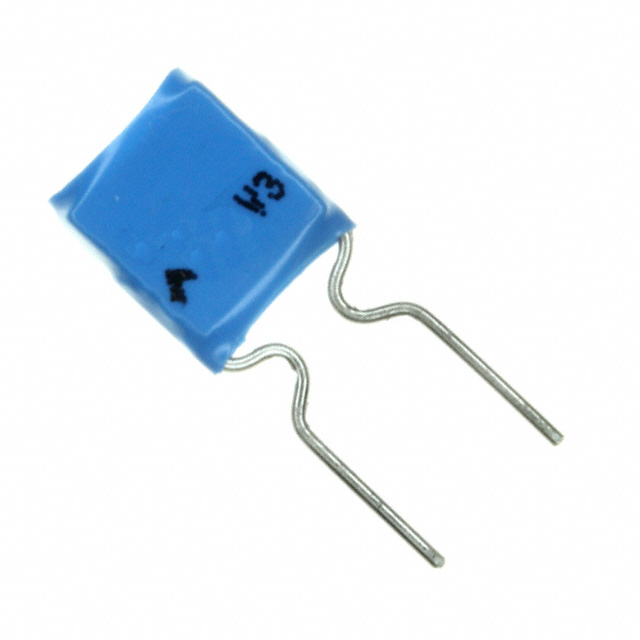

B32559C8102K000
ObsoleteEPCOS - TDK Electronics
CAP FILM 1000PF 10% 630VDC RAD
B32559C8102K000
ObsoleteEPCOS - TDK Electronics
CAP FILM 1000PF 10% 630VDC RAD
Description
General part information
B32559C8102K000
1000 pF Film Capacitor 400V 630V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32559C8102K000 |
|---|---|
| Capacitance | 1000 pF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.276 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.118 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 400 Vpk |
| Voltage Rating - DC | 630 V |
