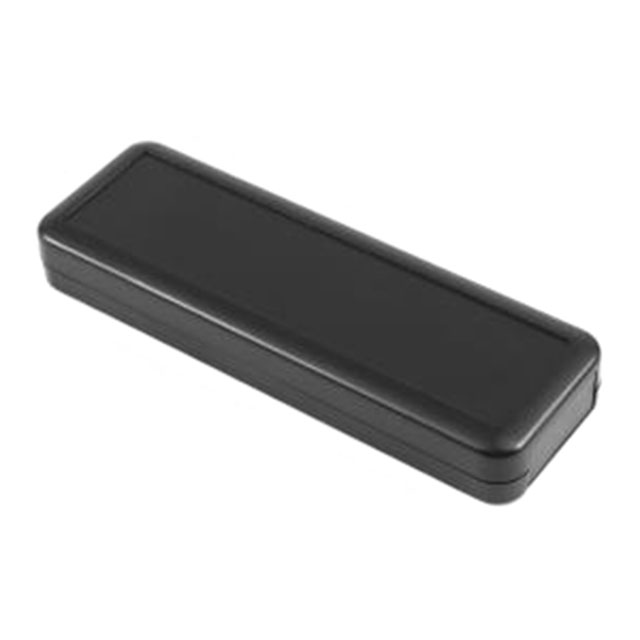

1552C5BK

Active

Hammond Manufacturing

BOX ABS BLACK 5.91"L X 1.97"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ABS BLACK 5.91"L X 1.97"W

Technical Specifications

Parameters and characteristics for this part

Specification	1552C5BK

Area (L x W)	75 cm²
Area (L x W)	11.7 in²
Color	Black
Container Type	Box
Design	Cover Included
Height [z]	0.87 "
Height [z]	22.1 mm
Material	ABS
Material Flammability Rating	UL94 V-0
Ratings	IP54
Size / Dimension [x]	5.91 "
Size / Dimension [x]	150.11 mm
Size / Dimension [y]	50.04 mm
Size / Dimension [y]	1.97 "
Thickness	2.03 mm
Thickness	0.08 "

Part	Accessory Type	For Use With/Related Products	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Design	Material	Height [z]	Height [z]	Ratings	Material Flammability Rating	Thickness	Thickness	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	Size / Dimension [z]	Area (L x W)	Area (L x W)
Hammond Manufacturing 1552CPGKITBK	Cable Gland Kit	1552C Series
Hammond Manufacturing 1552DHGY	Wall Mount	1552D Series
Hammond Manufacturing 1552C3GY			Gray	1.97 "	109.98 mm	4.33 in	50.04 mm	Box	Cover Included	ABS	0.87 "	22.1 mm	IP54	UL94 V-0	2.03 mm	0.08 "
Hammond Manufacturing 1552D3GY			Gray	1.97 "	109.98 mm	4.33 in	50.04 mm	Box	Cover Included	ABS	1.18 in	29.97 mm	IP54	UL94 V-0	2.03 mm	0.08 "
Hammond Manufacturing 1552DPLGY-10		1552D Series	Gray	2 in	76.2 mm	3 "				ABS							50.8 mm	0.88 in	22.35 mm	Panel End
Hammond Manufacturing 1552D3BK			Black	1.97 "	109.98 mm	4.33 in	50.04 mm	Box	Cover Included	ABS	1.18 in	29.97 mm	IP54	UL94 V-0	2.03 mm	0.08 "
Hammond Manufacturing 1552DPGKITBK	Cable Gland Kit	1552D Series
Hammond Manufacturing 1552CPLGY-10		1552C Series	Gray	2 in	76.2 mm	3 "	50.8 mm			ABS								0.63 in		Panel End	16 mm
Hammond Manufacturing 1552C1GY			Gray					Box	Cover Included	ABS	0.87 "	22.1 mm	IP54	UL94 V-0	2.03 mm	0.08 "						35.1 cm²	5.44 in²
Hammond Manufacturing 1552CPLBK-10		1552C Series	Black	2 in	76.2 mm	3 "	50.8 mm			ABS								0.63 in		Panel End	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box ABS Black Cover Included 5.910" L x 1.970" W (150.11mm x 50.04mm) X 0.870" (22.10mm)

Technical documentation and resources

No documents available
