SAN.M22.GLA.6GZ

Active

LEMO

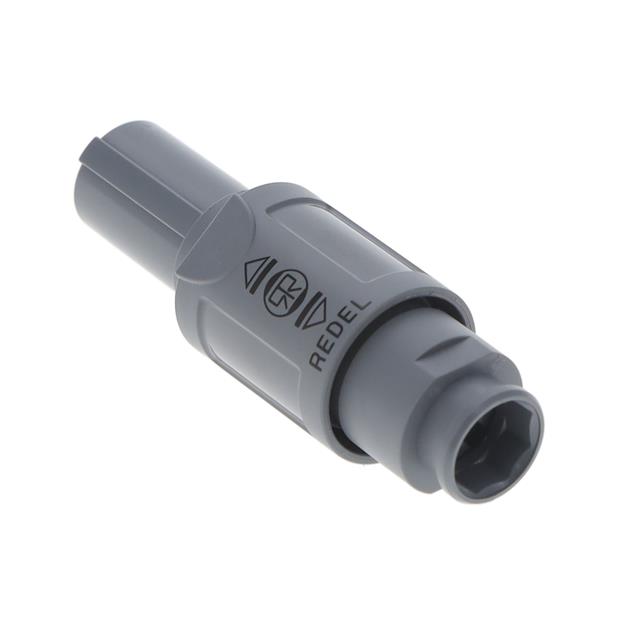

CONN PLUG MALE 22P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 22P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SAN.M22.GLA.6GZ	SAN.M22 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Sulfone	Sulfone
Cable Opening [custom]	0.209 in, 0.256 in	0.209 - 0.295 in
Cable Opening [custom]	6.5 mm, 5.3 mm	5.3 - 7.5 mm
Color	Gray	Gray, Blue
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	22 positions	22 positions
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Material	Sulfone	Sulfone
Shell Size - Insert	M22	M22
Shielding	Unshielded	Unshielded

CONN PLUG MALE 22P GOLD SLDR CUP

Part	Backshell Material, Plating	Shell Material	Color	Ingress Protection	Contact Finish - Mating	Current Rating (Amps)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Mounting Type	Number of Positions	Connector Type	Insert Material	Fastening Type	Features	Primary Material	Orientation
LEMO SAN.M22.GLA.7GZ	Sulfone	Sulfone	Gray	IP50	Gold	2 A	Automotive, Industrial, Medical, Testing Equipment & Measurement	-50 °C	170 °C	Unshielded	M22	6.6 mm, 7.5 mm	0.26 in, 0.295 in	Free Hanging (In-Line)	22 positions	Male Pins, Plug	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Plastic	N
LEMO SAN.M22.GLA.6GZ	Sulfone	Sulfone	Gray	IP50	Gold	2 A	Automotive, Industrial, Medical, Testing Equipment & Measurement	-50 °C	170 °C	Unshielded	M22	5.3 mm, 6.5 mm	0.209 in, 0.256 in	Free Hanging (In-Line)	22 positions	Male Pins, Plug	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Plastic	N
LEMO SAN.M22.GLA.6A	Sulfone	Sulfone	Blue, Gray	IP50	Gold	2 A	Automotive, Industrial, Medical, Testing Equipment & Measurement	-50 °C	170 °C	Unshielded	M22	5.3 mm, 6.5 mm	0.209 in, 0.256 in	Free Hanging (In-Line)	22 positions	Male Pins, Plug	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Plastic	N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position Circular Connector Plug, Male Pins Solder Cup
