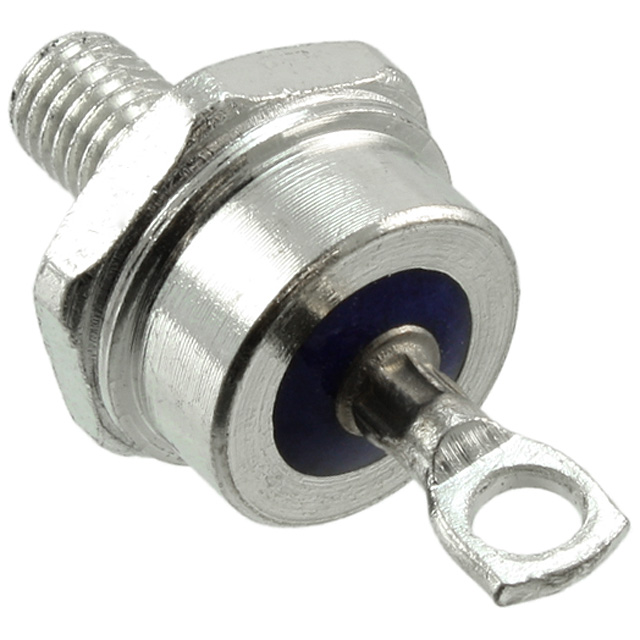

1N1190AR

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 600V 40A DO5

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 600V 40A DO5

Technical Specifications

Parameters and characteristics for this part

Specification	1N1190AR

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	190 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-203AB, DO-5, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-5
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

DIODE GEN PURP REV 600V 40A DO5

Part	Speed	Speed	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
GeneSiC Semiconductor 1N1190AR	Standard Recovery >500ns	200 mA	40 A	600 V	10 µA	Reverse Polarity, Standard	Chassis, Stud Mount	1.1 V	DO-5	DO-203AB, DO-5, Stud	190 °C	-65 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 600 V 40A Chassis, Stud Mount DO-5
