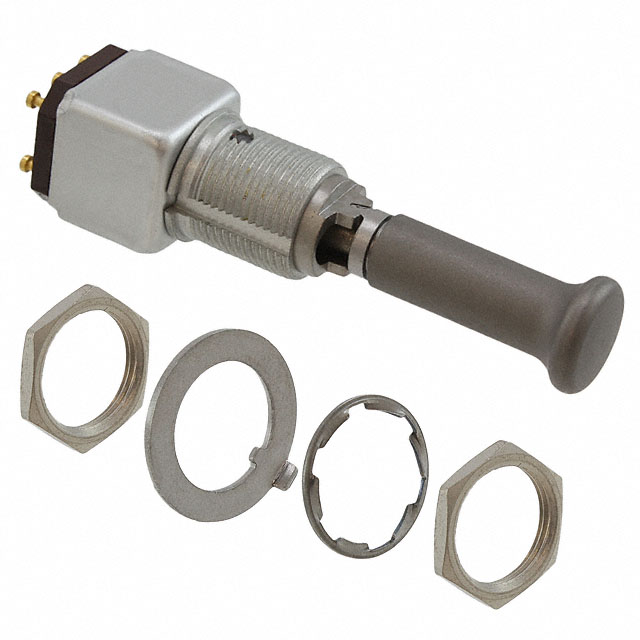

12TW8-1A

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMicro-Toggle Switch, Line Guide Datasheet

12TW8-1A

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

DocumentsMicro-Toggle Switch, Line Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 146.53

Description

General part information

12TW8 Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

Micro-Toggle Switch, Line Guide

Datasheet

Specification	12TW8-1A	12TW8 Series

Actuator Length [x]	29.46 mm	17.27 - 29.46 mm
Actuator Type	Locking Lever	Locking Lever, Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	SP3T, DPDT
Current Rating (Amps)	5 A	5 - 100 A
Features	-	Jumper needed to achieve triple throw
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-Off-On	On-On-On, On-On, Mom-On-Mom, On-Mom, On-Off-On, Mom-Off-Mom
Termination Style	Solder Turret	Solder Turret, PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	-	24 V

Part	Switch Function	Ingress Protection	Actuator Length [x]	Features	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Termination Style	Illumination	Current Rating (Amps)	Bushing Thread	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
Honeywell Sensing and Productivity Solutions 12TW8-10A	On-On-On	Environment Sealed	29.46 mm	Jumper needed to achieve triple throw	125 V	12.4 mm	Solder Turret	Non-Illuminated	5 A	15/32-32	SP3T	Locking Lever	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 12TW8-3D	On-On	Environment Sealed	29.46 mm		125 V	12.4 mm	Solder Turret	Non-Illuminated	5 A	15/32-32	DPDT	Locking Lever	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 12TW804-72E	Mom-On-Mom	Environment Sealed	29.46 mm		125 V	12.4 mm	Solder Turret	Non-Illuminated	5 A	15/32-32	DPDT	Locking Lever	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 12TW870-3	On-On	Environment Sealed	17.27 mm		125 V	12.4 mm	PC Pin	Non-Illuminated	5 A	15/32-32	DPDT	Standard Round	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 12TW8-8F	On-Mom	Environment Sealed	29.46 mm		125 V	12.4 mm	Solder Turret	Non-Illuminated	5 A	15/32-32	DPDT	Locking Lever	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 12TW873-1	On-Off-On	Environment Sealed	17.27 mm			12.4 mm	Solder Turret	Non-Illuminated	100 mA	15/32-32	DPDT	Standard Round	71 °C	-65 ░C	24 V
Honeywell Sensing and Productivity Solutions 12TW804-72	Mom-On-Mom	Environment Sealed	17.27 mm		125 V	12.4 mm	Solder Turret	Non-Illuminated	5 A	15/32-32	DPDT	Standard Round	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 12TW803-3	On-On	Environment Sealed	17.27 mm		125 V	12.4 mm	Solder Turret	Non-Illuminated	5 A	15/32-32	DPDT	Standard Round	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 12TW8-7	Mom-Off-Mom	Environment Sealed	17.27 mm		125 V	12.4 mm	Solder Turret	Non-Illuminated	5 A	15/32-32	DPDT	Standard Round	71 °C	-65 ░C
Honeywell Sensing and Productivity Solutions 12TW8-10P	On-On-On	Environment Sealed	29.46 mm		125 V	12.4 mm	Solder Turret	Non-Illuminated	5 A	15/32-32	DPDT	Locking Lever	71 °C	-65 ░C
