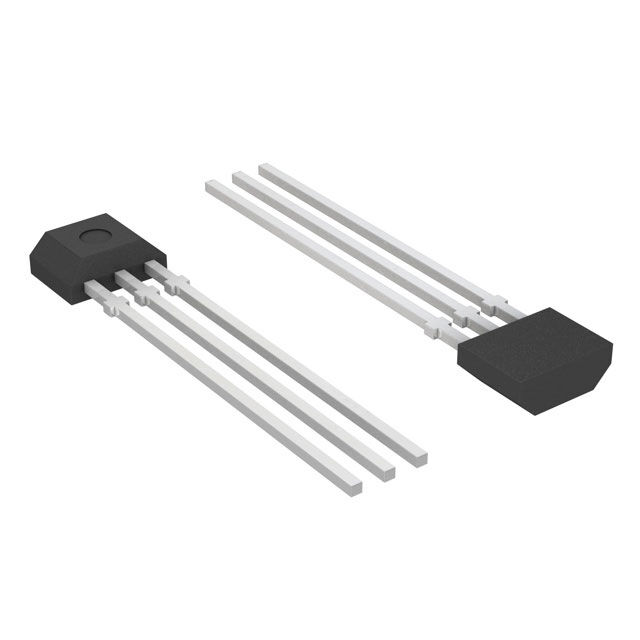

A1120LUA-T

Active

Allegro MicroSystems

HALL EFFECT SENSOR 25MA UNIPOLAR 3.3V/5V/9V/12V/15V/18V 3-PIN ULTRA MINI-SIP BULK AUTOMOTIVE AEC-Q100

Search across all available documentation for this part.

Active

Allegro MicroSystems

HALL EFFECT SENSOR 25MA UNIPOLAR 3.3V/5V/9V/12V/15V/18V 3-PIN ULTRA MINI-SIP BULK AUTOMOTIVE AEC-Q100

Technical Specifications

Parameters and characteristics commom to parts in this series

HALL EFFECT SENSOR 25MA UNIPOLAR 3.3V/5V/9V/12V/15V/18V 3-PIN ULTRA MINI-SIP BULK AUTOMOTIVE AEC-Q100

Part	Sensing Range	Polarization	Mounting Type	Output Type	Package / Case	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Function	Supplier Device Package	Current - Supply (Max) [Max]	Qualification	Technology	Current - Output (Max) [Max]	Test Condition [Max]	Test Condition [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]
Allegro MicroSystems A1120LUA-T	0.5 mT, 5 mT	South Pole	Through Hole	Open Drain	3-SSIP	Automotive	-40 °C	150 °C	Unipolar Switch	3-SIP	4 mA	AEC-Q100	Hall Effect	25 mA	150 °C	-40 °C	3 V	24 V
Allegro MicroSystems A1120LLHLX-T	0.5 mT, 5 mT	South Pole	Surface Mount	Open Drain	SOT-23W	Automotive	-40 °C	150 °C	Unipolar Switch	SOT-23W	4 mA	AEC-Q100	Hall Effect	25 mA	150 °C	-40 °C	3 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Digital Switch Unipolar Switch Open Drain Hall Effect 3-SIP
