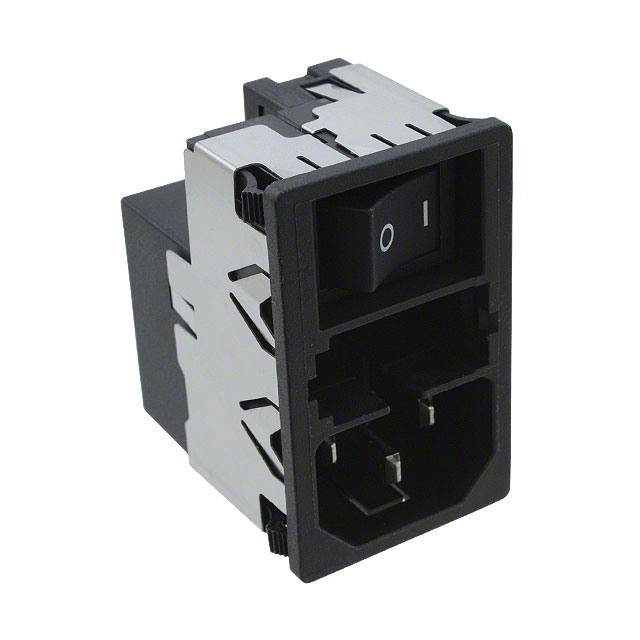

KMF1.1161.11

Active

SCHURTER Inc.

KMF PEM WITH FILTER 6A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

SCHURTER Inc.

KMF PEM WITH FILTER 6A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	KMF1.1161.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	6 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

KMF PEM WITH FILTER 6A ROHS COMPLIANT: YES

Part	Accomodates a Fuse	Ingress Protection	Current Rating - Filter	Mounting Type	Material Flammability Rating	Termination	Termination	Switch Features	Approval Agency	Filter Type	Current Rating - Appliance Inlet	Connector Style	Connector Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Fuse Holder, Drawer	Features
SCHURTER Inc. KMF1.1161.11		IP40	6 A	Panel Mount, Snap-In	UL94 V-0	0.189 ", 4.8 mm	Quick Connect	Switch On-Off	CCC, cULus, ENEC	Filtered (EMI, RFI) - Commercial	10 A	IEC 320-C14	Receptacle, Male Blades - Module	2.5 mm	1 mm	0.098 in	0.039 in	250 VAC	47.8 mm	28.8 mm	Drawer Sold Separate	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
