2902972
ActivePhoenix Contact

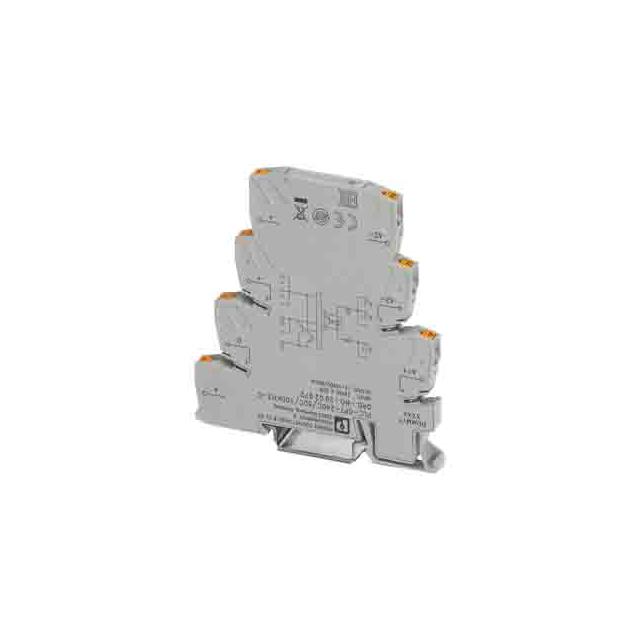

SSR RELAY SPST-NO 50MA 4-18V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2902972
ActivePhoenix Contact
SSR RELAY SPST-NO 50MA 4-18V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2902972 | 290297 Series |
|---|---|---|
| Approval Agency | DNV, UKCA, CE | DNV, UKCA, CE |
| Load Current | 50 mA | 50 mA |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output Type | DC | DC |
| Package / Case | Module | Module |
| Termination Style | Spring Terminal | Spring Terminal |
| Voltage - Input | 24 V | 5 - 24 VDC |
| Voltage - Load [Max] | 18 V | 18 - 30 V |
| Voltage - Load [Min] | 4 V | 4 - 14 V |
290297 Series
SSR RELAY SPST-NO 50MA 4-18V
| Part | Load Current | Mounting Type | Output Type | Voltage - Load [Max] | Voltage - Load [Min] | Voltage - Input | Approval Agency | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2902971 | 50 mA | DIN Rail | DC | 18 V | 4 V | 5 VDC | CE, DNV, UKCA | Spring Terminal | -25 °C | 60 °C | Module |
Phoenix Contact 2902974 | 50 mA | DIN Rail | DC | 30 V | 14 V | 24 V | CE, DNV, UKCA | Spring Terminal | -25 °C | 60 °C | Module |
Phoenix Contact 2902973 | 50 mA | DIN Rail | DC | 30 V | 14 V | 5 VDC | CE, DNV, UKCA | Spring Terminal | -25 °C | 60 °C | Module |
Phoenix Contact 2902972 | 50 mA | DIN Rail | DC | 18 V | 4 V | 24 V | CE, DNV, UKCA | Spring Terminal | -25 °C | 60 °C | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.42 | |
Description
General part information
290297 Series
Solid State SPST-NO (1 Form A) Module
