87232-2
ActiveTE Connectivity AMP Connectors

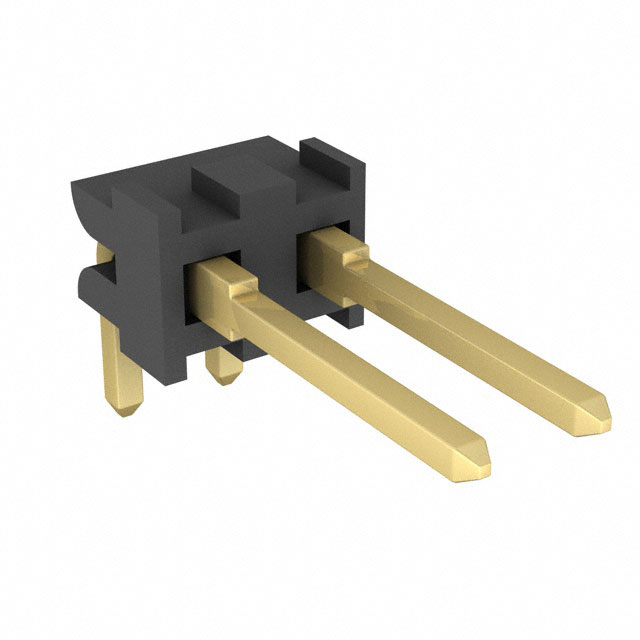

CONN HEADER R/A 2POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87232-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 2POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87232-2 | 87232 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post | 2.79 mm | 2.79 mm |
| Contact Length - Post [x] | 0.11 in | 0.11 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 3.5 mm | 3.5 mm |
| Insulation Height | 0.138 in | 0.138 in |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled | Nylon, Polyamide (PA), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 2 | 1 - 20 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
87232 Series
CONN HEADER R/A 7POS 2.54MM
| Part | Fastening Type | Number of Positions Loaded | Mounting Type | Shrouding | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Style | Current Rating (Amps) | Contact Material | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post | Insulation Color | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Shape | Insulation Material | Contact Type | Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87232-7 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | 7 | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | 0.1 in | 2.54 mm | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header |
TE Connectivity AMP Connectors 2-87232-0 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | 20 | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | 0.1 in | 2.54 mm | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header |
TE Connectivity AMP Connectors 1-87232-1 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | 11 | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | 0.1 in | 2.54 mm | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header |
TE Connectivity AMP Connectors 87232-9 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | 9 | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | 0.1 in | 2.54 mm | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header |
TE Connectivity AMP Connectors 87232-2 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | 2 | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | 0.1 in | 2.54 mm | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header |
TE Connectivity AMP Connectors 1-87232-0 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | 10 | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | 0.1 in | 2.54 mm | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header |
TE Connectivity AMP Connectors 87232-1 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | 1 | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header | ||
TE Connectivity AMP Connectors 87232-6 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | 6 | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | 0.1 in | 2.54 mm | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header |
TE Connectivity AMP Connectors 1-87232-2 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | 12 | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | 0.1 in | 2.54 mm | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header |
TE Connectivity AMP Connectors 87232-5 | Push-Pull | All | Through Hole, Right Angle | Unshrouded | 1 | 30 Áin | 0.76 Ám | 3.5 mm | 0.138 in | -65 ░C | 105 ░C | Gold | Board to Board, Cable | 3 A | Phosphor Bronze | UL94 V-0 | 0.1 in | 2.54 mm | Flash | Gold | 0.11 in | 2.79 mm | Black | 0.318 " | 8.08 mm | Square | Glass Filled, Nylon, Polyamide (PA) | Male Pin | Solder | Header |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.28 | |
| 10 | $ 1.89 | |||
Description
General part information
87232 Series
Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
