1624058
ActivePhoenix Contact
DEVICE CONNECTOR FOR FRONT WALL,
1624058
ActivePhoenix Contact
DEVICE CONNECTOR FOR FRONT WALL,
Description
General part information
1624058

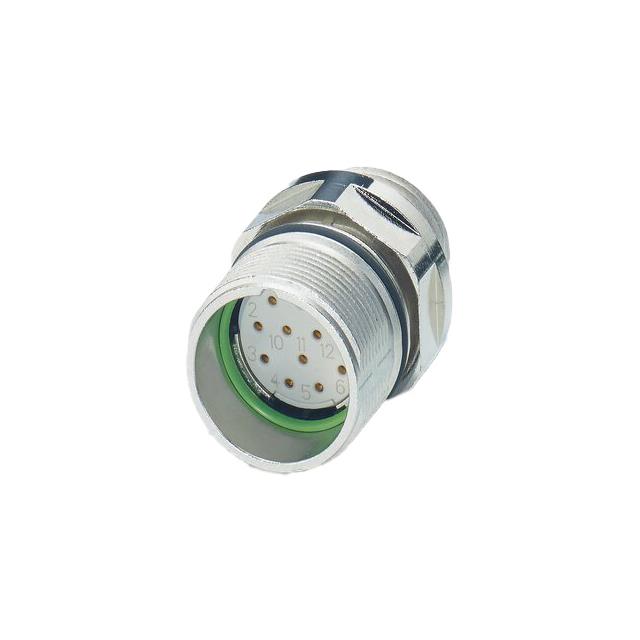

19 (16 + 3 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 1624058 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating Options | 10A, 8A |
| Fastening Type | Push-Twist |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions (Normal) | 16 |
| Number of Positions (Power) | 3 |
| Number of Positions (Total) | 19 |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-19 |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 74 VDC |
