MAXM17516EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17516
Deep-Dive with AI
Search across all available documentation for this part.
MAXM17516EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17516
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17516EVKIT# | MAXM17516 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 6 A | 6 A |
| Current - Output (Max) | - | 6 A |
| Features | - | OTP, UVLO, OCP |
| Frequency - Switching | 1 MHz | 1 MHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 29-SMD Module, Exposed Pad |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 15 mm |
| Size / Dimension | - | 0.11 in |
| Size / Dimension | - | 0.59 in |
| Size / Dimension | - | 9 mm |
| Size / Dimension | - | 2.8 mm |
| Size / Dimension | - | 0.35 " |
| Supplied Contents | Board(s) | Board(s) |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17516 | MAXM17516 |
| Voltage - Input (Max) | - | 5.5 V |
| Voltage - Input (Min) | - | 2.4 V |
| Voltage - Input [Max] | 5.5 V | 5.5 V |
| Voltage - Input [Min] | 2.4 V | 2.4 V |
| Voltage - Output 1 | - | 1.8 V |
| Voltage - Output 1 | - | 0.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 41.05 | |
MAXM17516 Series
EVAL KIT FOR MAXM17516
| Part | Utilized IC / Part | Current - Output | Outputs and Type | Outputs and Type | Frequency - Switching | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Regulator Topology | Board Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Mounting Type | Number of Outputs | Voltage - Input (Min) [Min] | Package / Case | Type | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17516EVKIT# | MAXM17516 | 6 A | Non-Isolated | 1 | 1 MHz | DC/DC, Step Down | 2.4 V | 5.5 V | Board(s) | Buck | Fully Populated | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17516ALI+ | 125 °C | -40 °C | ITE (Commercial) | 6 A | 15 mm | 0.11 in | 0.59 in | 9 mm | 2.8 mm | 0.35 " | 5.5 V | Surface Mount | 1 | 2.4 V | 29-SMD Module, Exposed Pad | Non-Isolated PoL Module | 1.8 V | 0.75 V | OCP, OTP, UVLO |
Description
General part information
MAXM17516 Series

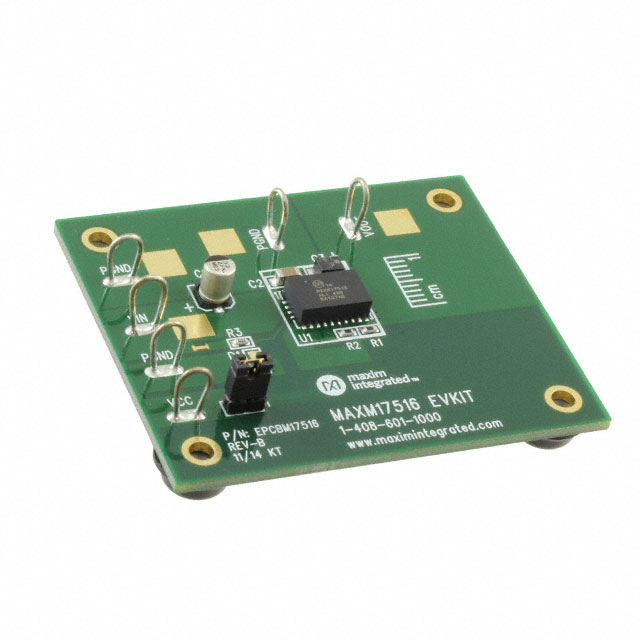

MAXM17516 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
