Description
General part information
09551157622741

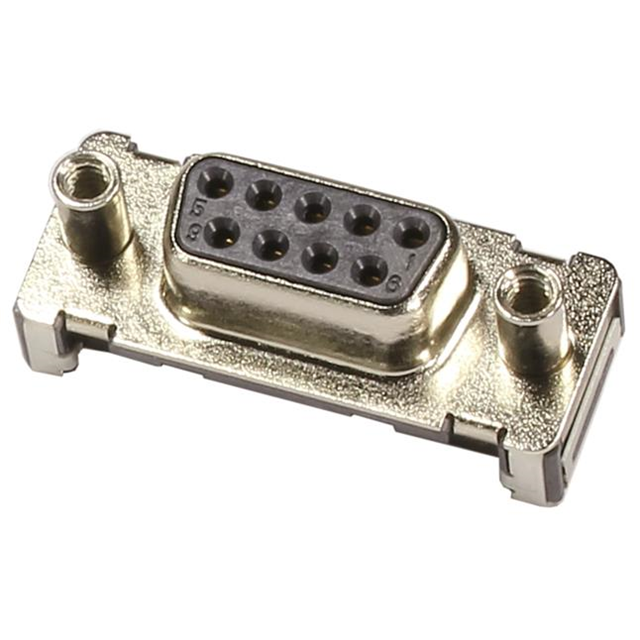

9 Position D-Sub Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 09551157622741 |
|---|---|
| Color | Black |
| Connector Layout | DE, E |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 5 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide |
| Finish | Nickel Plated |
| Flange Feature | Shell (4-40), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 1 |
| Termination | Solder |
