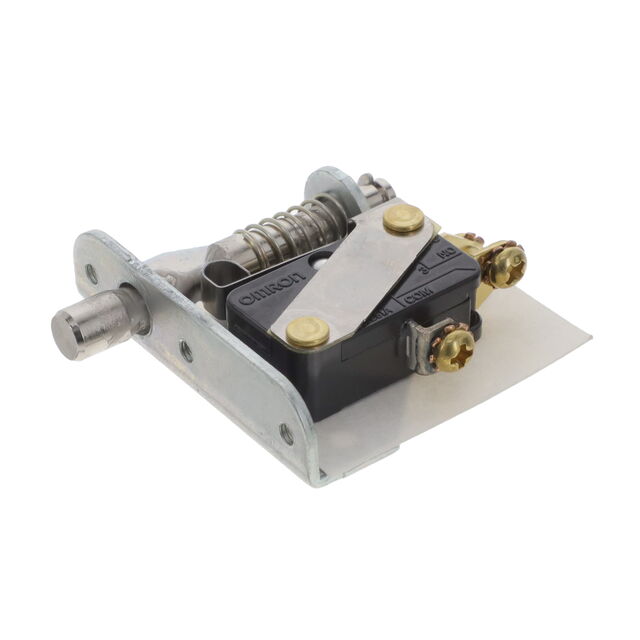

1VAP2-2

Active

Omron Automation and Safety

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

Omron Automation and Safety

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACTION SPDT 15A 125V

Part	Operating Force	Circuit	Mounting Type	Switch Function	Voltage Rating - AC	Electrical Life	Termination Style	Ingress Protection	Overtravel	Overtravel	Mechanical Life	Current Rating (Amps)	Pretravel	Pretravel	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]
Omron Automation and Safety 1VAP2-2	1795 gf	SPDT	Chassis Mount	On-Mom	125 V	25000 Steps	Screw Terminal	IP00	2 mm	0.079 in	100000 Cycles	15 A	4.4 mm	0.172 "	Push-Pull Plunger	-25 °C	80 C
Omron Automation and Safety 1VAP2-6 V-15-1B6	1500 gf	SPST-NO	Chassis Mount	Off-Mom	125 V	25000 Steps	Screw Terminal	IP00	3 mm	0.118 in	100000 Cycles	15 A			Push-Pull Plunger	-25 °C	80 C
Omron Automation and Safety 1VAP2-6	1500 gf	SPST-NO	Chassis Mount	Off-Mom	125 V	25000 Steps	Screw Terminal	IP00	3 mm	0.118 in	100000 Cycles	15 A			Push-Pull Plunger	-25 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
