16980-6PG-522
ActiveConxall/Switchcraft

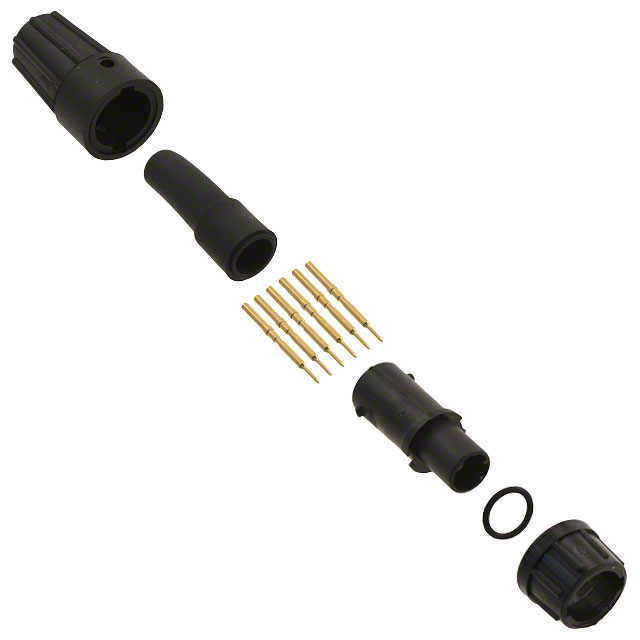

CONN PLUG MALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16980-6PG-522
ActiveConxall/Switchcraft
CONN PLUG MALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 16980-6PG-522 | 16980-6P Series |
|---|---|---|
| Applications | Medical, Data, Instrumentation, Industrial | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening [Max] [diameter] | 5.84 mm | 5.84 mm |
| Cable Opening [Max] [diameter] | 0.23 in | 0.23 in |
| Cable Opening [Min] [diameter] | 0.22 in | 0.22 in |
| Cable Opening [Min] [diameter] | 5.59 mm | 5.59 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
16980-6P Series
CONN PLUG MALE 6POS GOLD CRIMP
| Part | Voltage Rating | Mounting Type | Orientation | Current Rating (Amps) | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Color | Termination | Fastening Type | Applications | Features | Ingress Protection | Contact Material | Material Flammability Rating | Contact Finish - Mating | Number of Positions | Backshell Material, Plating | Shielding | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 16980-6PG-318 | 600 VAC | Free Hanging (In-Line) | A | 4 A | Plastic | 85 °C | -40 °C | Male Pins, Plug | Black | Crimp | Bayonet Lock | Data, Industrial, Instrumentation, Medical | Backshell | IP67 - Dust Tight, Waterproof | Copper Alloy | UL94 HB | Gold | 6 | Thermoplastic | Unshielded | ||||
Conxall/Switchcraft 16980-6PG-522 | 600 VAC | Free Hanging (In-Line) | A | 4 A | Plastic | 85 °C | -40 °C | Male Pins, Plug | Black | Crimp | Bayonet Lock | Data, Industrial, Instrumentation, Medical | Backshell | IP67 - Dust Tight, Waterproof | Copper Alloy | UL94 HB | Gold | 6 | Thermoplastic | Unshielded | 5.84 mm | 0.22 in | 5.59 mm | 0.23 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 7.84 | |
Description
General part information
16980-6P Series
6 Position Circular Connector Plug, Male Pins Crimp
