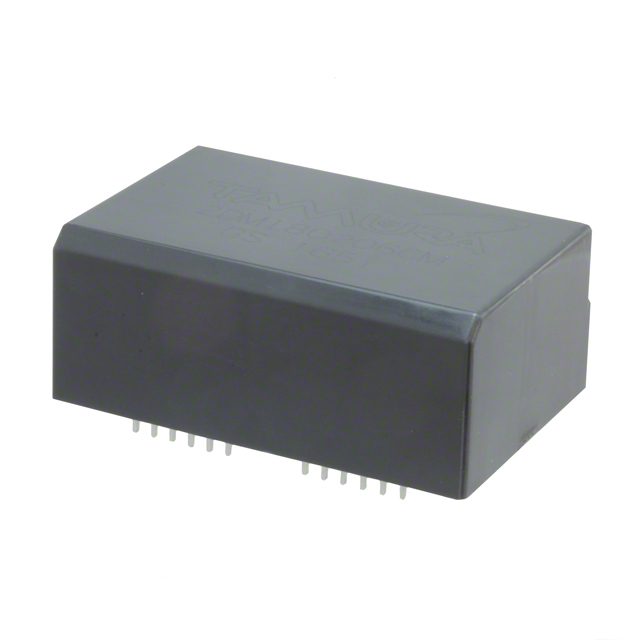

2DM180206CM
ObsoleteTamura
IC GATE DRVR HALF-BRIDGE 0502
Deep-Dive with AI
Search across all available documentation for this part.
2DM180206CM
ObsoleteTamura
IC GATE DRVR HALF-BRIDGE 0502
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2DM180206CM |
|---|---|
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8 V, 2 V |
| Mounting Type | Through Hole |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2DM180206CM
Half-Bridge Gate Driver IC 0502
Documents
Technical documentation and resources
No documents available
