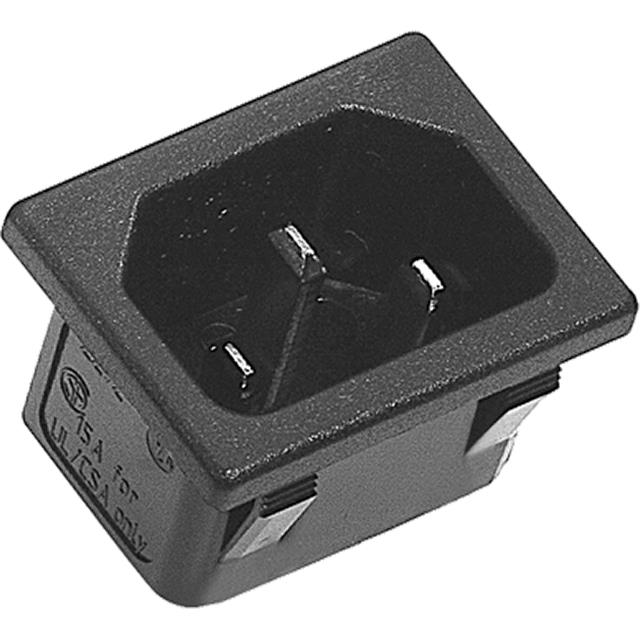

42R02-3212-150

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	42R02-3212-150	42R02 Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA, cUL
Connector Style	IEC 320-C14	IEC 320-C14, IEC 320-C16
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle, Male Pins, Receptacle, Male Pins - Module, Receptacle, Male Blades - Module, Receptacle, Female Sockets
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In, Flange
Panel Cutout Dimensions [x]	20 mm	20 - 27.5 mm
Panel Cutout Dimensions [y]	27.5 mm	20 - 27.5 mm
Panel Thickness [custom]	0.059 in	0.059 in
Panel Thickness [custom]	1.5 mm	1.5 mm
Termination	0.25 in	0.187 - 0.25 in
Termination	6.3 mm	4.7 - 6.3 mm
Termination	Quick Connect	Quick Connect

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Material Flammability Rating	Connector Style	Filter Type	Panel Thickness [custom]	Panel Thickness [custom]	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Connector Type	Termination	Termination	Termination
Power Dynamics, Inc. 42R02-3212-150	UL94 V-0	IEC 320-C14	Unfiltered - Commercial	0.059 in	1.5 mm	Panel Mount, Snap-In	27.5 mm	20 mm	CSA, UL, VDE	Male Blades, Receptacle	0.25 in	6.3 mm	Quick Connect
Power Dynamics, Inc. 42R02-4212E	UL94 V-0	IEC 320-C14				Flange, Panel Mount	20 mm	27.5 mm	CSA, UL, VDE	Male Pins, Receptacle	0.187 "	4.7 mm	Quick Connect
Power Dynamics, Inc. 42R02-4122	UL94 V-0	IEC 320-C14					20 mm	27.5 mm	CSA, UL, VDE	Receptacle, Male Pins - Module	0.187 "	4.7 mm	Quick Connect
Power Dynamics, Inc. 42R02-4112	UL94 V-0	IEC 320-C14					20 mm	27.5 mm	CSA, UL, VDE	Receptacle, Male Pins - Module	0.187 "	4.7 mm	Quick Connect
Power Dynamics, Inc. 42R02-4212	UL94 V-0	IEC 320-C14					20 mm	27.5 mm	cUL, UL, VDE	Receptacle, Male Blades - Module	0.25 in	6.3 mm	Quick Connect
Power Dynamics, Inc. 42R02-1211	UL94 V-0	IEC 320-C16					20 mm	27.5 mm	CSA, UL, VDE	Receptacle, Male Pins - Module	0.25 in	6.3 mm	Quick Connect
Power Dynamics, Inc. 42R02-1111	UL94 V-0	IEC 320-C16					20 mm	27 mm	CSA, UL, VDE	Receptacle, Female Sockets	0.187 "	4.7 mm	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
