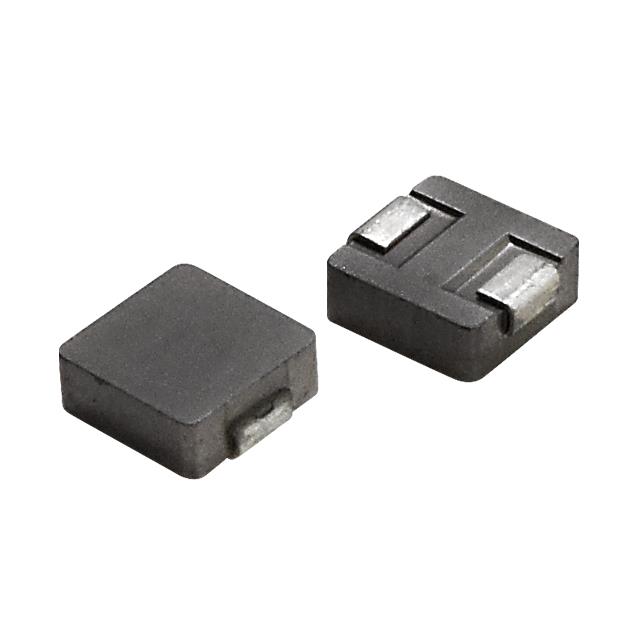

SLPPI03-02-R68M-TR
ActiveSignal Transformer
HI POWER IND 0.68UH 22.0 MOHM 1
SLPPI03-02-R68M-TR
ActiveSignal Transformer
HI POWER IND 0.68UH 22.0 MOHM 1
Description
General part information
SLPPI03-02-R68M-TR
680 nH Shielded Molded Inductor 5.5 A 26mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SLPPI03-02-R68M-TR |
|---|---|
| Current - Saturation (Isat) | 8.5 A |
| Current Rating | 5.5 A |
| DC Resistance (DCR) (Max) | 26 mOhm |
| Height - Seated (Max) | 0.079 in |
| Inductance | 680 nH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.134 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 20 % |
| Type | Molded |
