DSD03-1.503

Active

Dinkle Corporation, USA

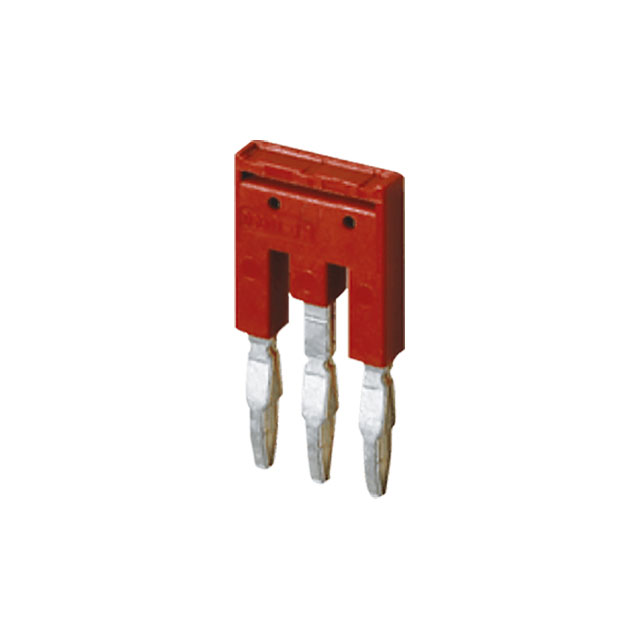

JUMPER TERM BLK 3 POSITION 3.5MM

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

JUMPER TERM BLK 3 POSITION 3.5MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DSD03-1.503	DSD03 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	Copper	Copper
For Use With/Related Products	AK, DP Series	AK, DP Series
Number of Positions	-	2
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Style	Flat Pins	Flat Pins
Type	Terminal Block, Cross Connection	Terminal Block, Cross Connection

JUMPER TERM BLK 3 POSITION 3.5MM

Part	Contact Finish	For Use With/Related Products	Pitch [x]	Pitch [x]	Type	Color	Contact Material	Style	Number of Positions
Dinkle Corporation, USA DSD03-1.503	Tin	AK, DP Series	3.5 mm	0.138 in	Terminal Block, Cross Connection	Red	Copper	Flat Pins
Dinkle Corporation, USA DSD03-1.502	Tin	AK, DP Series	3.5 mm	0.138 in	Terminal Block, Cross Connection	Red	Copper	Flat Pins	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Terminal Block, Cross Connection Jumper Flat Pins
