A-20042-LPS

Active

Assmann WSW Components

CONN MOD JACK 10P8C R/A SHLD

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN MOD JACK 10P8C R/A SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A-20042-LPS	A-20042 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	0.152 Ám	0.152 Ám
Contact Finish Thickness	6 Áin	6 Áin
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	-	Solder Retention
Housing Material	Polybutylene Terephthalate (PBT)	Polyamide (PA9T), Nylon 9T, Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Ports	1	1
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Number of Positions/Contacts [custom]	8	8
Number of Positions/Contacts [custom]	10	10
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	90 °	90 °
Shielding	Shielded	Unshielded, Shielded
Tab Direction	Down	Down
Termination	Solder	Solder

CONN MOD JACK 8P8C R/A UNSHLD

Part	Housing Material	Connector Type	Number of Positions/Contacts	Contact Finish	Tab Direction	Number of Ports	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	LED Color	Contact Material	Number of Rows	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Features	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Assmann WSW Components A-20042-LP/SMT-A	Polyamide (PA9T), Nylon 9T	Jack	8p8c (RJ45, Ethernet)	Gold	Down	1	Solder	0.152 Ám	6 Áin	Surface Mount	Does Not Contain LED	Phosphor Bronze	1	90 °	85 °C	-40 °C	Unshielded	Solder Retention
Assmann WSW Components A-20042-LPS	Polybutylene Terephthalate (PBT)	Jack		Gold	Down	1	Solder	0.152 Ám	6 Áin	Through Hole	Does Not Contain LED	Phosphor Bronze	1	90 °	85 °C	-40 °C	Shielded		8	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

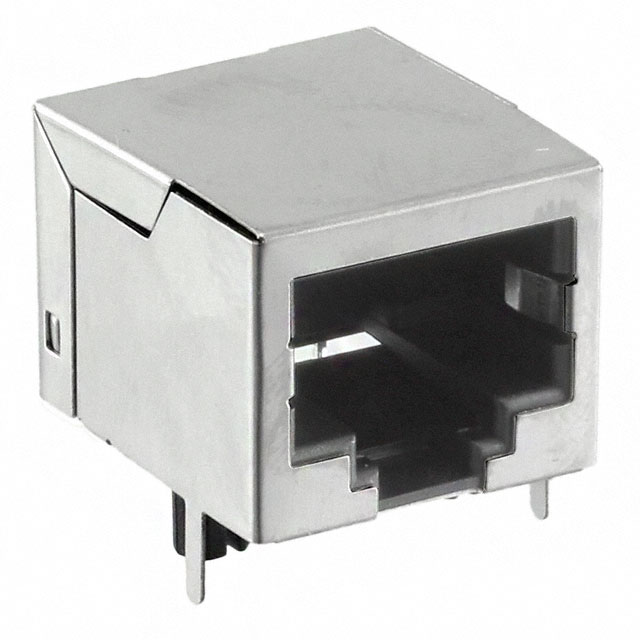

Jack Modular Connector 10p8c 90° Angle (Right) Shielded
