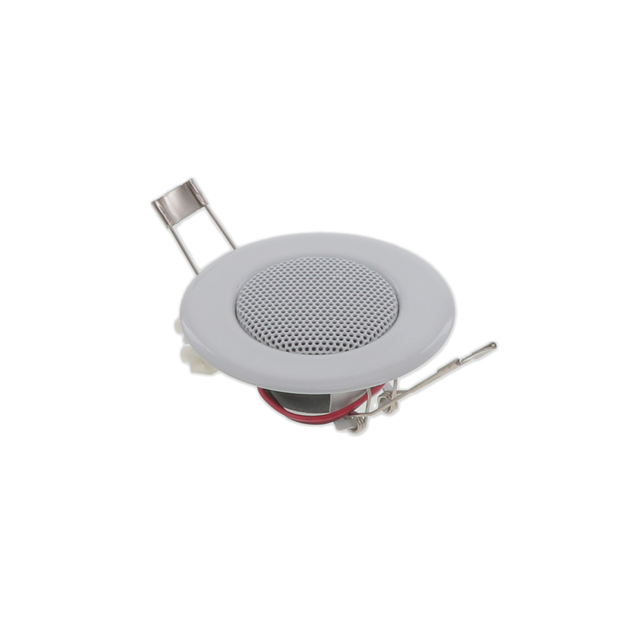

DL 5 - 8 OHM
ActiveVisaton GmbH & Co. KG
SPEAKER 8OHM 4W TOP PORT 89DB
DL 5 - 8 OHM
ActiveVisaton GmbH & Co. KG
SPEAKER 8OHM 4W TOP PORT 89DB
Description
General part information
DL 5 - 8 OHM
8 Ohms Subwoofer Speaker 4 W 150 Hz ~ 20 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | DL 5 - 8 OHM |
|---|---|
| Efficiency - dBA | 89 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 280 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 150 Hz |
| Height - Seated (Max) | 1.358 in |
| Impedance | 8 Ohm |
| Ingress Protection | IP54 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Power - Max | 10 VA |
| Power - Rated | 4 W |
| Shape | Round |
| Size / Dimension Diameter | 3.366 in |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | Subwoofer |
