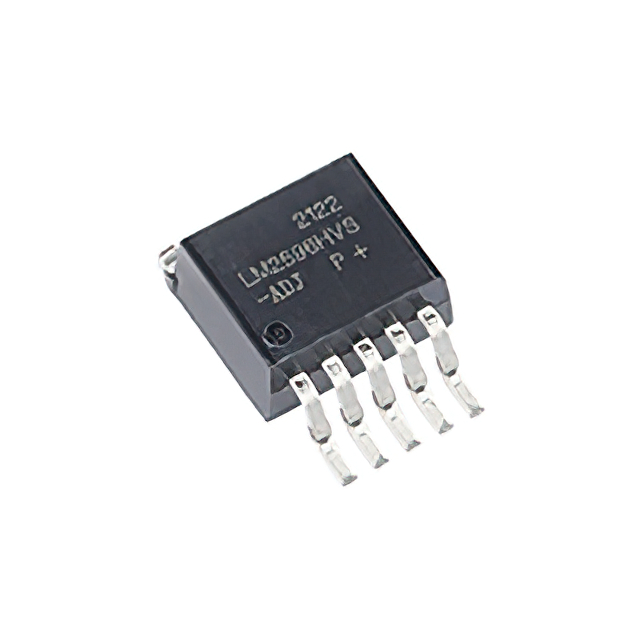

LM2596HVS-ADJ

Active

UMW

IC REG BUCK ADJ 3A TO263-5L

Search across all available documentation for this part.

Active

UMW

IC REG BUCK ADJ 3A TO263-5L

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Number of Outputs	Topology	Mounting Type	Package / Case	Voltage - Output (Min/Fixed)	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Function	Output Configuration	Voltage - Input (Max) [Max]	Output Type	Voltage - Output (Max)
UMW LM2596S-12	TO-263-5L	1	Buck	Surface Mount	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	12 V	3 A	-40 °C	125 °C	1.81 mOhm	Step-Down	Positive
UMW LM2596S-3.3	TO-263-5L	1	Buck	Surface Mount	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	3.3 V	3 A	-40 °C	125 °C	1.81 mOhm	Step-Down	Positive
UMW LM2596HVS-12	TO-263-5L	1	Buck	Surface Mount	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	12 V	3 A	-40 °C	125 ¯C	1.81 mOhm	Step-Down	Positive	57 V
UMW LM2596S-5.0	TO-263-5L	1	Buck	Surface Mount	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	5 V	3 A	-40 °C	125 °C	1.81 mOhm	Step-Down	Positive
UMW LM2596HVS-ADJ	TO-263-5L	1	Buck	Surface Mount	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1.2 V	3 A	-40 °C	125 °C		Step-Down	Positive	57 V	Adjustable	37 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
